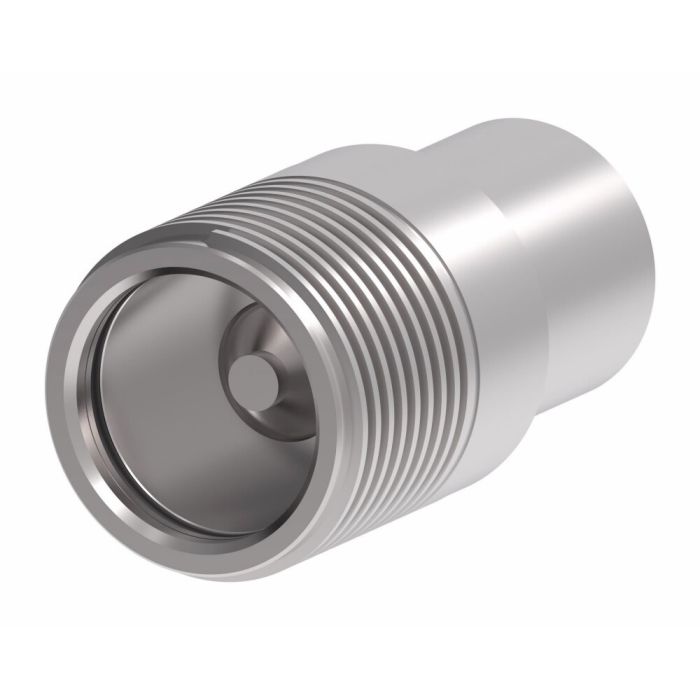

Designed for robust hydraulic and fluid transfer applications, the Hansen FD85 Series Quick Disconnect Couplings by Danfoss/Eaton offer exceptional durability and performance. These couplings feature a convenient quick connect and disconnect mechanism, eliminating the need for special tools and enhancing operational efficiency. Constructed from carbon steel, they are built to withstand demanding environments, such as mining equipment use. With a flow rate of 26.4 gallons per minute, these couplings exceed ISO 16028 operating pressures, ensuring reliability under high-pressure conditions.
The coupling's design includes a female NPTF end with a 0.75-inch size, providing a secure and leak-proof connection. The internal thread-to-connect mechanism further enhances connection integrity. Certified by Lloyd's Registry for fire conditions as outlined in API 16D and EUB Directive, these couplings meet stringent safety and compatibility standards. The Buna-N seal material adds to their resilience, making them suitable for a wide range of hydraulic fluids.
SKU: FD85-1001-12-12
Supplier Part Number (MPN): FD85-1001-12-12
|
Alternate Part Numbers
MINO-00015X11159
|
Application
Hydraulic and fluid transfer, Mining equipment
|
Certifications
Lloyd's Registry Certificate for fire conditions outlined in API 16D and EUB Directive.
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.75
|
End Type 1
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
26.4 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.75
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD85-1001-12-12
|
Product Weight
1.06 lbs
|
