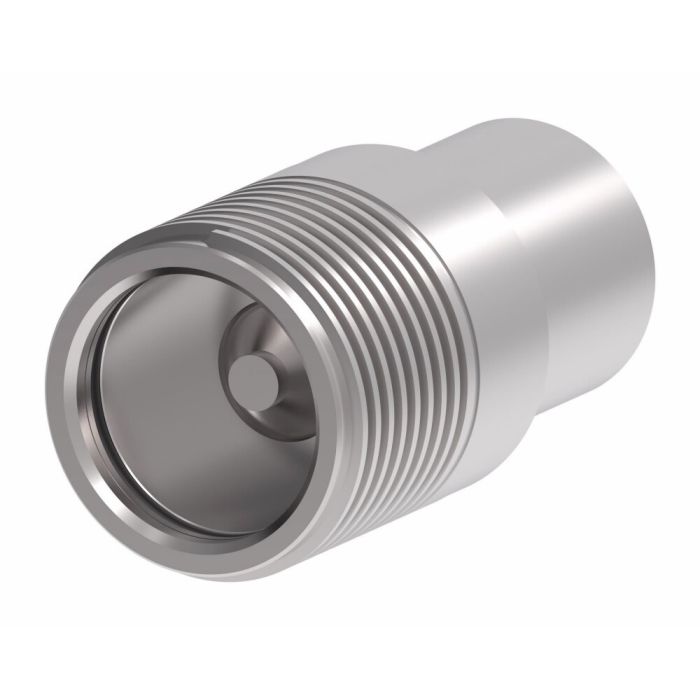

Designed for demanding environments including oilfield, offshore drilling, and oil and gas applications, this 1-1/2" carbon steel Male Plug is part of the Eaton Aeroquip Hansen FD85 Series quick disconnect coupling line. The male half connects via NPTF threading and pairs with an NPT female end, using a thread-to-connect internal mechanism for a secure, tool-free coupling and release.
Constructed from carbon steel with nitrile seals, the Male Plug is rated for flow up to 100 gallons per minute and operates reliably down to -4°F. It exceeds ISO 16028 operating pressure standards and carries Lloyd's Registry certification for fire conditions as outlined in API 16D and EUB Directive requirements, making it well-suited for safety-critical offshore and oilfield installations. The two-way valve design features no safety locking mechanism, allowing straightforward connect and disconnect without additional hardware.
SKU: FD85-1001-24-24
Supplier Part Number (MPN): FD85-1001-24-24
|
Alternate Part Numbers
MINO-00015X11161
|
Application
Oilfields, Offshore Drilling, Construction, Oil and Gas
|
Certifications
Lloyd's Registry Certificate for fire conditions outlined in API 16D and EUB Directive.
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
NPTF
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
100 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1 1/2
|
Product Material
Carbon Steel
|
Product Width
3.25
|
Safety locking Mechanism
None
|
Seal Material
Nitrile
|
Sub Brand
Hansen
|
Supplier Part Number
FD85-1001-24-24
|
Valve Type
2 way
|
Product Weight
7.72 lbs
|
