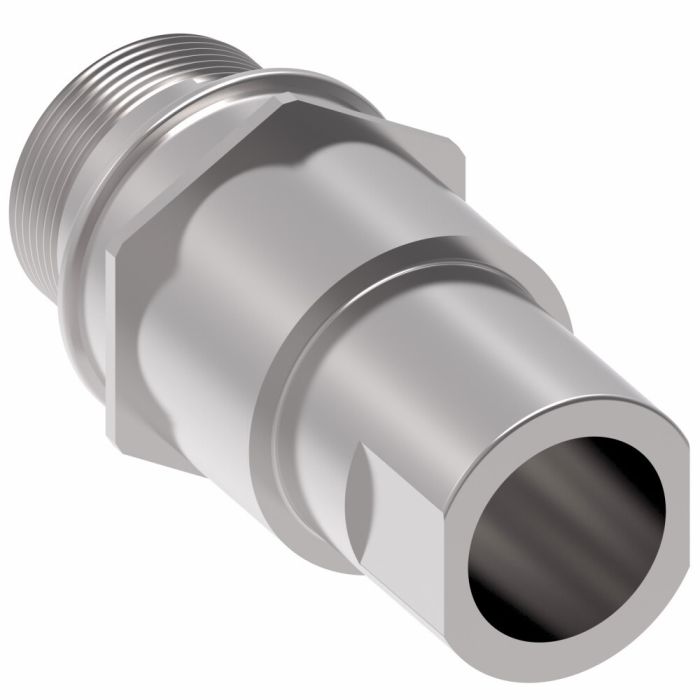

main product photo

DANFOSS / EATON COUPLINGS - CODE CP

Ask A Question

Description & Features

Ideal for hydraulic and fluid transfer applications, particularly in mining equipment, the Eaton Aeroquip Hansen FD86 Series Quick Disconnect Couplings Plug ensures efficient performance and reliability. This male half coupling features a robust carbon steel construction, designed to withstand harsh environments and demanding conditions. Equipped with a quick connect and disconnect feature, it eliminates the need for special tools, facilitating ease of use and maintenance.

With an end size of 1 inch and a thread to connect type paired with an NPTF connection, this coupling offers a secure fit and seamless integration into your system. The nitrile seal material ensures excellent fluid compatibility and durability. Capable of handling flow rates up to 50 gallons per minute, it exceeds ISO 16028 operating pressures, ensuring optimum performance in high-pressure environments.

SKU: FD86-1002-16-16

Supplier Part Number (MPN): FD86-1002-16-16

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT, Male Quick-Disconnect
Connection Type 1
Male Quick Disconnect
Connection Type 2
Female NPT
Dimensions
2.11 in Dia x 4.4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Coupling
Hex Size
1-3/4 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Seal Material
NBR
Series
FD86 Series
Thread Size
1-11-1/2
Valve Type
2-Way

Product Questions & Answers (3)

Question by: Norm A on Aug 17, 2025, 8:59 PM
got a mining rig running a hydraulic line with a 1-inch NPTF port, will this plug thread right into it without any adapter business?
Answer by: Customer Support on Aug 19, 2025, 10:02 AM
A 1-inch NPTF connection on your line is exactly what this coupling is built for. The male half threads directly into a female NPTF port, no adapters needed. Carbon steel construction holds up well in the kind of rough-duty environments mining equipment runs in, so you should get a solid, leak-resistant fit right out of the box.
Question by: Janice M on Aug 1, 2025, 7:52 AM
got a 1 inch nptf port on a hydraulic line, is this the right male quick disconnect half for that?
Answer by: Customer Support on Aug 2, 2025, 5:36 PM
For a 1 inch NPTF threaded connection, this one matches up as the male half with a 1 inch end size and an NPTF end type, so it’s set up to thread into a 1 inch NPTF port.
Question by: Roger H on Oct 18, 2025, 10:44 AM
Will this fitting hold up okay in a hydraulic setup on some heavy equipment?
Answer by: Customer Support on Oct 19, 2025, 7:17 PM
It's built from carbon steel, so it should be able to handle tough conditions, just like you'd expect for mining or similar heavy-duty applications.
