Designed for high-demand hydraulic and fluid transfer applications, this carbon steel male plug from the Eaton Hansen Fd86 Series handles flow rates up to 75 gallons per minute with a minimum working temperature rating of -40°F. The 1-1/4 FNPT port connects via a thread-to-connect interface, and Nitrile seals provide reliable fluid containment across a broad range of compatible media.

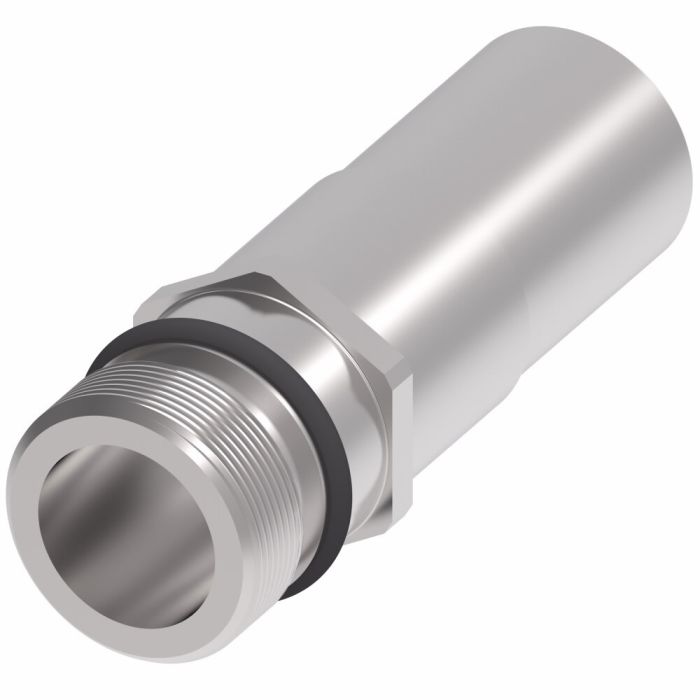

The High Impulse M-Plug 1 1/4 Fnpt Quick Disconnect, part of the Hansen FD86 Series, exceeds ISO 16028 operating pressure standards, making it well-suited for mining equipment and other heavy-duty hydraulic circuits. Connection and disconnection require no special tools, reducing service time in the field. The two-way valve design supports straightforward integration into existing hydraulic lines.
SKU: FD86-1002-20-20
Supplier Part Number (MPN): FD86-1002-20-20
|
Alternate Part Numbers
MINO-00402X03246
|
Application
Hydraulic and fluid transfer, Mining equipment
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
Thread to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
75 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1 1/4
|
Product Material
Carbon Steel
|
Product Width
2.48
|
Safety locking Mechanism
None
|
Seal Material
Nitrile
|
Sub Brand
Hansen
|
Supplier Part Number
FD86-1002-20-20
|
Valve Type
2 way
|
Product Weight
3.54 lbs
|
