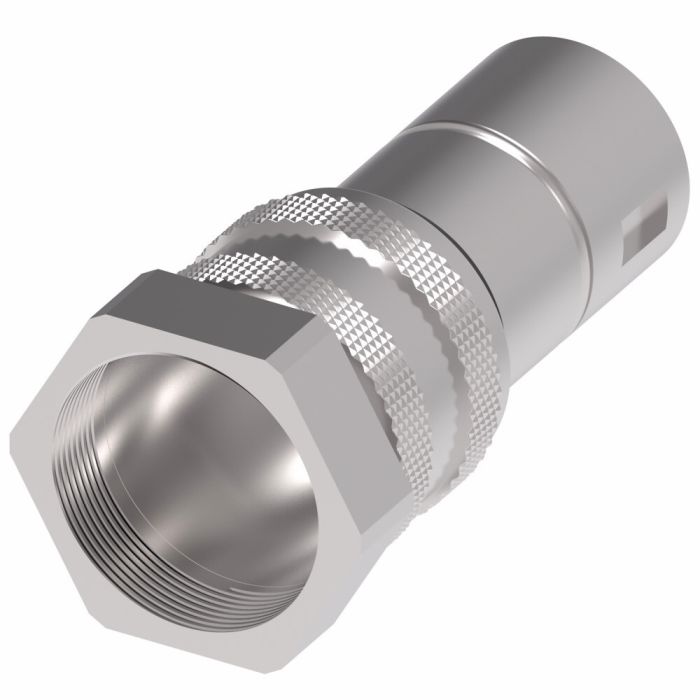

This Danfoss / Eaton Hansen FD86 Series quick disconnect coupling socket is designed for hydraulic and fluid transfer applications, including use on mining equipment. This female half coupling features a thread-to-connect internal connection and exceeds ISO 16028 operating pressures.
Constructed from carbon steel with Buna-N seals, this 2-way valve coupling requires no special tools for quick connection and disconnection. It features female NPTF thread-to-connect end types, each with a 1" port size and a flow rate of 50 gallons per minute. It has a minimum working temperature of -40 degrees.
SKU: FD86-1004-16-16
Supplier Part Number (MPN): FD86-1004-16-16
|
Alternate Part Numbers
MINO-00925X12739
|
Application
Hydraulic and fluid transfer, Mining equipment
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 1
1
|
End Size 2
1
|
End Type 1
Thread to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1
|
Product Material
Carbon Steel
|
Product Width
2.81
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD86-1004-16-16
|
Valve Type
2 way
|
Product Weight
15.35 lbs
|
