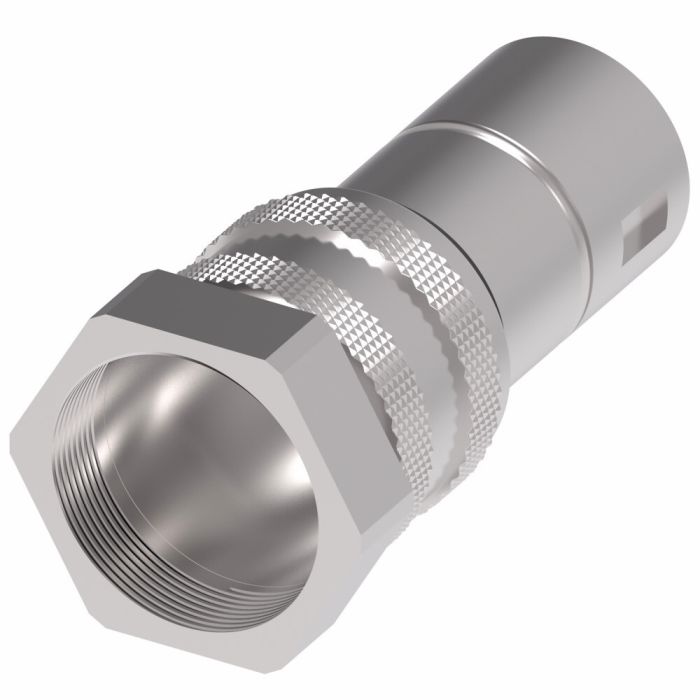

Designed for hydraulic and fluid transfer applications including mining equipment, this carbon steel female half coupling handles flow rates up to 50 gallons per minute and operates reliably down to -40°F. The Thread to Connect internal connection pairs with a 1-5/16 SAE ORB port, making it compatible with standard hydraulic circuit configurations. Buna-N seals provide dependable fluid containment across a broad range of hydraulic media.
The Danfoss / Eaton Hansen FD86 Series Quick Disconnect Couplings Socket, part of the Hansen sub-brand's FD86 line, connects and disconnects without special tools and exceeds ISO 16028 operating pressure requirements. The female half construction with Thread to Connect end type supports straightforward integration into existing hydraulic lines, reducing downtime during maintenance or equipment reconfiguration.
SKU: FD86-1006-16-16
Supplier Part Number (MPN): FD86-1006-16-16
|
Alternate Part Numbers
MINO-00402X03247
|
Application
Hydraulic and fluid transfer, Mining equipment
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Thread to Connect
|
End Type 2
SAE ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1 5/16
|
Product Material
Carbon Steel
|
Product Width
2.81
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD86-1006-16-16
|
Product Weight
14.30 lbs
|
