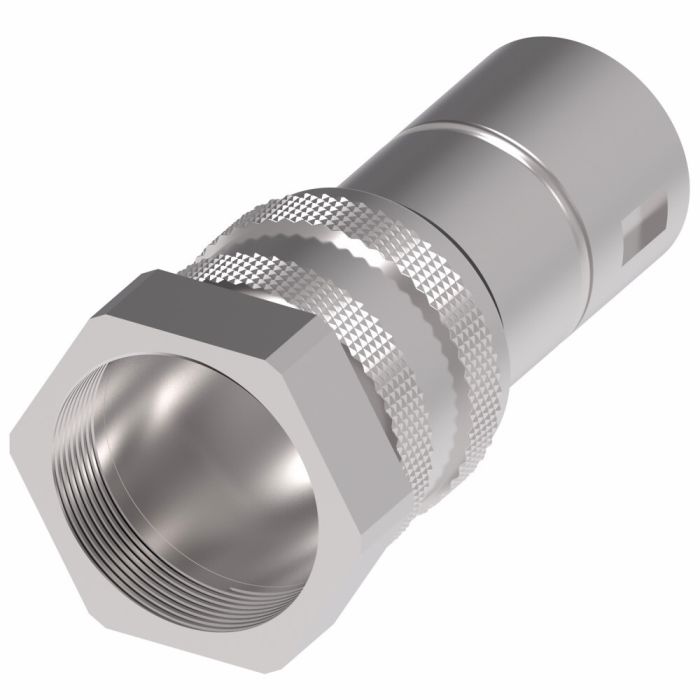

This Danfoss / Eaton Hansen FD86 Series quick disconnect coupling socket is designed for hydraulic and fluid transfer applications, including mining equipment.
Featuring a 2-way valve type, this female half coupling offers quick connect and disconnect functionality without the need for special tools. It exceeds ISO 16028 operating pressures and handles a flow rate of up to 75 gallons per minute. Constructed from carbon steel with Buna-N seals, this coupling has a minimum working temperature of -40 degrees. It features a 1 5/8 port size and thread-to-connect internal connection with SAE ORB end types.
SKU: FD86-1006-20-20
Supplier Part Number (MPN): FD86-1006-20-20
|
Alternate Part Numbers
MINO-00925X12742
|
Application
Hydraulic and fluid transfer, Mining equipment
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Thread to Connect
|
End Type 2
SAE ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
75 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1 5/8
|
Product Material
Carbon Steel
|
Product Width
3.40
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD86-1006-20-20
|
Valve Type
2 way
|
Product Weight
0.01 lbs
|
