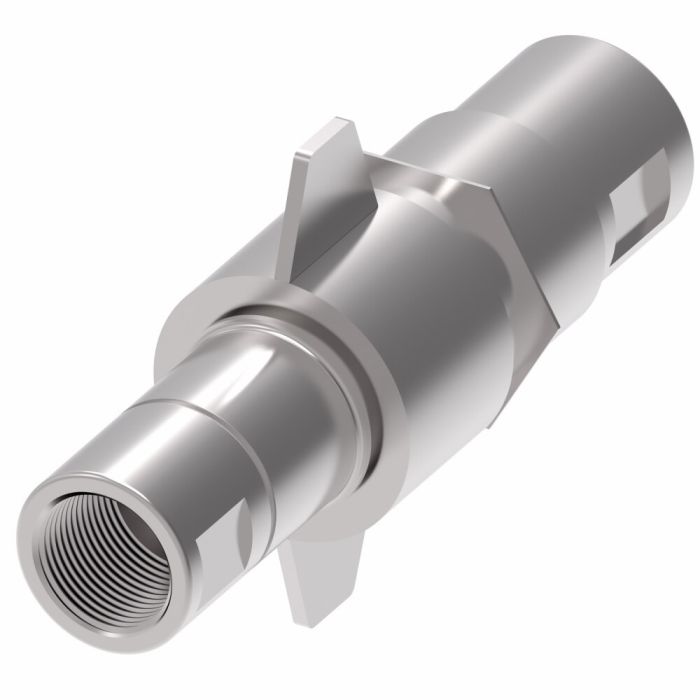

Danfoss / Eaton FD86 Coupling

Ask A Question

Description & Features

The Danfoss / Eaton FD86 Coupling is a female half quick disconnect, designed for hydraulic and fluid transfer applications, including use on mining equipment.

Featuring quick connect and disconnect functionality, these couplings eliminate the need for special tools. Constructed from carbon steel with Buna-N seals, this 2-way valve coupling features a thread to connect internal connection and exceeds ISO 16028 operating pressures. This female coupling has a 1 5/16 inch port size and a flow rate of 50 gallons per minute.

SKU: FD86-1007-16-16

Supplier Part Number (MPN): FD86-1007-16-16

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Style
Manual
Connection Type
FNPT
Connection Type 1
Female NPTF
Connection Type 2
Female NPTF
Finish
Zinc
Fitting Type
Coupling
Fluid Compatibility
Oil
Hex Size
1-3/4 in
Latch Type
Screw-to-Connect
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Segment Code
C
Series
FD86 Series
Valve Type
2-Way

Product Questions & Answers (1)

Question by: Lance R on Nov 30, 2025, 6:34 AM
Reckon this'll hold up okay on a piece of mining equipment? We run those things pretty hard.
Answer by: Customer Support on Dec 2, 2025, 6:50 AM
It's designed for hydraulic and fluid transfer applications, and it's definitely suitable for use on mining equipment. The carbon steel build and Buna-N seals are made to withstand tough conditions.
