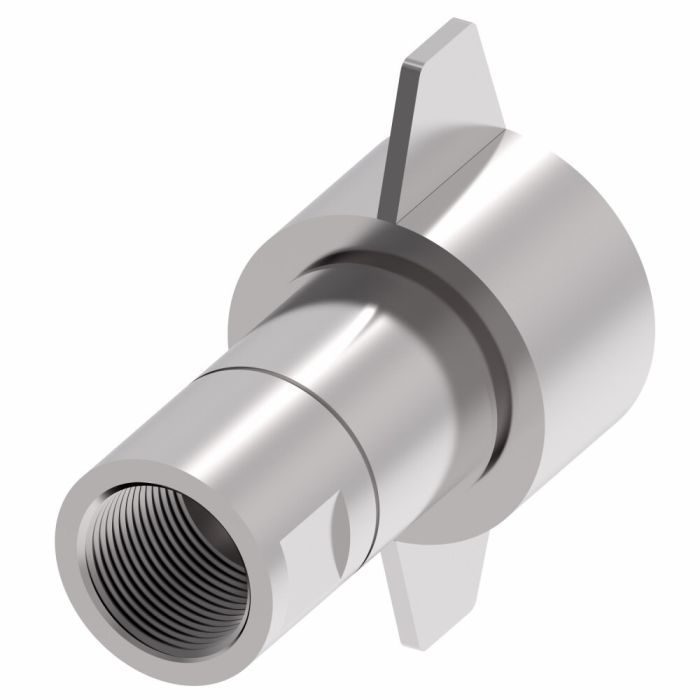

This Eaton Aeroquip quick disconnect coupling is part of the Danfoss / Eaton Hansen FD86 Series and is designed for hydraulic and fluid transfer applications, including use on mining equipment. This male half features a thread-to-connect internal connection type and a SAE ORB end type 2.
Featuring quick connect and disconnect functionality, this carbon steel coupling eliminates the need for special tools. It exceeds ISO 16028 operating pressures and offers a flow rate of 75 gallons per minute. It is constructed with Buna-N seals and is designed to perform in minimum working temperatures as low as -40 degrees. Port size: 1 5/8.
SKU: FD86-1008-20-20
Supplier Part Number (MPN): FD86-1008-20-20
Alternate Part Numbers: C1JA60
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1JA60, Alternate Part Number MINO-00402X03248
Application
Hydraulic and fluid transfer, Mining equipment
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Type 1
Thread to Connect
End Type 2
SAE ORB
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Got a mining rig running hydraulic lines and need something that can handle the cold up on the high benches at night. How low of a temp can this coupling take before it starts giving trouble?
Answer by: Customer Support on Aug 4, 2025, 8:18 AM
Buna-N seals in this coupling hold up down to -40 degrees, so cold-weather operation on mining equipment is well within its range. That rating lines up with the conditions this product was specifically built for, given its listed mining equipment application. As long as your fluid stays compatible with Buna-N seals, you shouldn't run into seal-related failures from the cold alone.
Question by: Denise M on May 1, 2025, 6:04 PM
got a FD86 plug here, is this the male half with the SAE ORB end or am i lookin at the wrong one
Answer by: Customer Support on May 3, 2025, 9:19 AM
For fit and end style, FD86-1008-20-20 is the male half in the Hansen FD86 Series. It uses a thread-to-connect internal connection and the port end is SAE ORB, with a 1 5/8 port size.
Question by: Rhonda C on Apr 8, 2025, 6:47 PM
If I need to swap out a coupling on my equipment, is this the right fitting for hydraulic fluid transfer, especially since I'm working with mining equipment?
Answer by: Customer Support on Apr 10, 2025, 10:02 AM
This Eaton Aeroquip quick disconnect coupling is indeed designed for hydraulic and fluid transfer applications, making it suitable for use on mining equipment.
