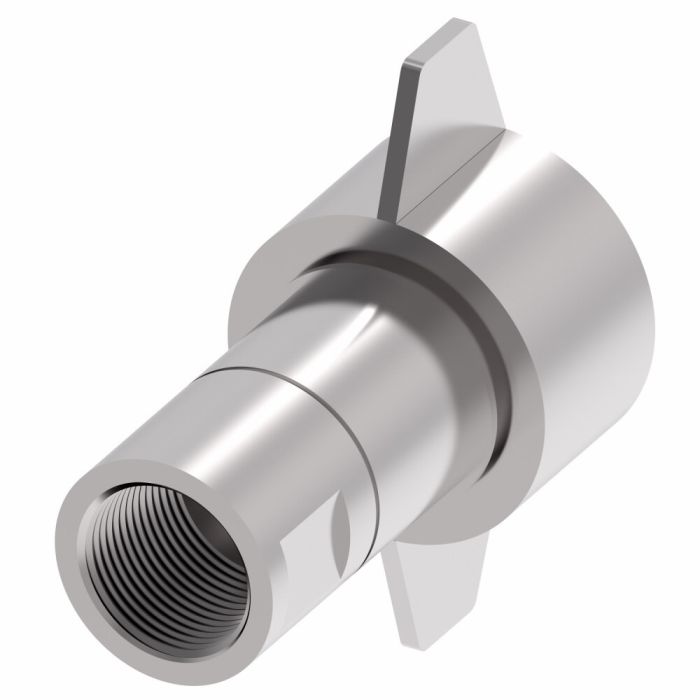

main product photo

DANFOSS / EATON COUPLINGS - CODE CP

Ask A Question

Description & Features

The Eaton Aeroquip Hansen FD86 Series Quick Disconnect Couplings offer exceptional performance for hydraulic and fluid transfer applications, particularly in demanding environments like mining equipment. Designed with a thread-to-connect mechanism, these couplings ensure secure and efficient fluid connections without the need for special tools. Manufactured from robust carbon steel, the couplings provide durability and reliability under extreme conditions, operating effectively at temperatures as low as -40°F.

Featuring a flow rate of up to 50 gallons per minute, these couplings exceed ISO 16028 operating pressures, making them a reliable choice for high-pressure systems. The female half design with SAE ORB end types ensures compatibility with a wide range of hydraulic components, providing versatility and ease of integration into existing systems. The Buna-N seal material further enhances the couplings' ability to prevent leaks, ensuring optimal performance.

SKU: FD86-1010-16-16

Supplier Part Number (MPN): FD86-1010-16-16

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1-5/16 in
Connection Style
Manual
Connection Type
Female ORB
Connection Type 1
Female ORB
Connection Type 2
Female ORB
Dimensions
4.5 in Dia x 4.62 in L
Finish
Zinc Trivalent
Fitting Type
Coupling
Fluid Compatibility
Hydraulic Fluids
Hex Size
1-3/4 in
Latch Type
Screw-to-Connect
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
5000 psi
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FD86 Series
Thread Size
1-5/16-12
Valve Type
2-Way

Product Questions & Answers (3)

Question by: Brett A on Feb 22, 2026, 9:35 AM
If I'm hooking this up to some older equipment, will it still hold up okay, or is it meant for newer stuff?
Answer by: Customer Support on Feb 24, 2026, 6:41 AM
These Eaton Aeroquip Hansen FD86 series couplings are made from carbon steel and designed to work in demanding environments, even down to -40°F. So, age of the equipment shouldn't be an issue, as long as the system meets the pressure and fluid compatibility requirements.
Question by: Rick P on Mar 16, 2026, 8:10 AM
these rated for mining use or just general hydraulic work?
Answer by: Customer Support on Mar 18, 2026, 6:29 AM
Mining is actually one of the primary applications these were built for. The carbon steel construction and ability to handle temperatures down to -40°F make them well-suited for the kind of punishment mining equipment puts on components. They also exceed ISO 16028 operating pressures, so high-demand environments are well within their range.
Question by: Janet T on Sep 29, 2025, 8:57 PM
got a cold-weather rig, how low a temp will this quick disconnect handle?
Answer by: Customer Support on Oct 1, 2025, 2:08 PM
For cold conditions, the minimum working temperature listed for this coupling is -40°F, so it is intended to keep operating down to that point.
