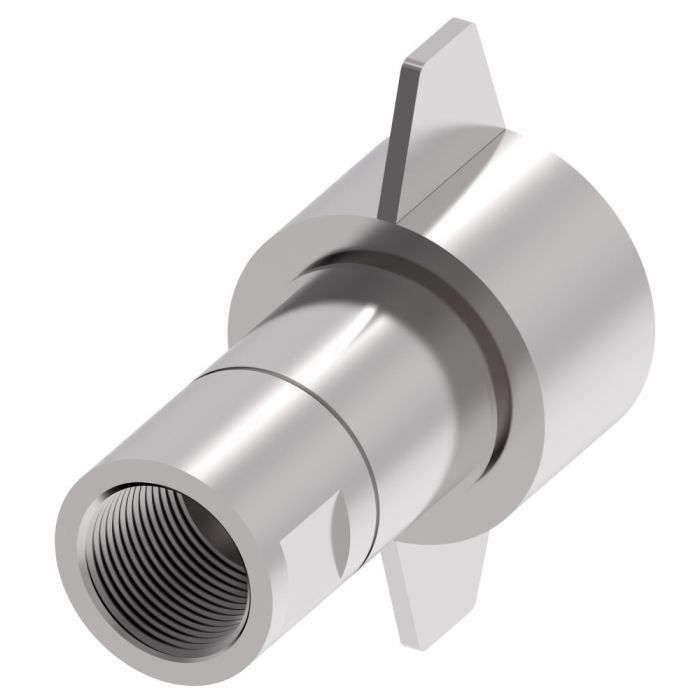

Designed for demanding hydraulic and fluid transfer applications, the Aeroquip Coupling is part of the Hansen FD86 Series and built to perform in environments including mining equipment. Constructed from carbon steel with Buna-N seals, it offers reliable service down to -40°F minimum working temperature and supports flow rates up to 75 gallons per minute.
This female half features a Thread to Connect internal connection with an SAE ORB port, sized at 1 5/8", and uses a two-way valve configuration. Quick connect and disconnect functionality requires no special tools, and the coupling exceeds ISO 16028 operating pressure requirements. Carbon steel construction provides the structural integrity expected in heavy-duty industrial service.
SKU: FD86-1010-20-20
Supplier Part Number (MPN): FD86-1010-20-20
Alternate Part Numbers: C1JA61
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1JA61, Alternate Part Number MINO-00402X03249
Application
Hydraulic and fluid transfer, Mining equipment
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Type 1
Thread to Connect
End Type 2
SAE ORB
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Answer by: Customer Support on Oct 27, 2025, 7:01 AM
This Aeroquip coupling is designed for hydraulic and fluid transfer applications, so it should work with most common hydraulic fluids. You can check the Eaton website for fluid compatibility details using the link provided in the product information.
