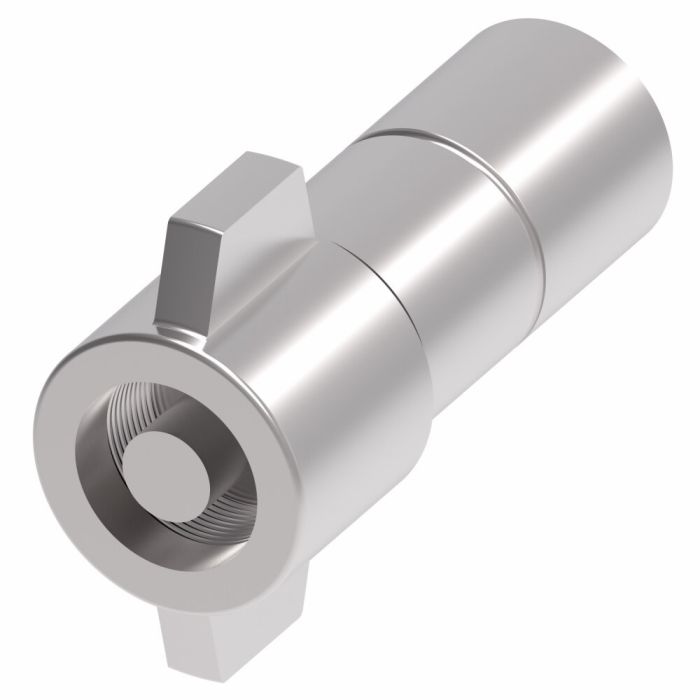

Rated for flows up to 50 gallons per minute, this 1-inch female half from the Danfoss / Eaton Hansen FD86 Series Quick Disconnect Couplings line is built for demanding hydraulic and fluid transfer applications, including mining equipment. The socket features a Thread to Connect internal configuration with a 1-inch NPTF port, allowing reliable inline connection without special tools.
Constructed from carbon steel with Buna-N seals, the coupling is rated for operating temperatures as low as -40°F and exceeds ISO 16028 pressure requirements. The two-way valve design enables quick connect and disconnect under standard service conditions. This female half is sold as an individual unit and is compatible with the Aeroquip / Hansen product family.
SKU: FD86-1039-16-16
Supplier Part Number (MPN): FD86-1039-16-16
|
Alternate Part Numbers
MINO-00402X03278
|
Application
Hydraulic and fluid transfer, Mining equipment
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 1
1
|
End Size 2
1
|
End Type 1
Thread to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1
|
Product Material
Carbon Steel
|
Product Width
4.50
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD86-1039-16-16
|
Valve Type
2 way
|
Product Weight
0.01 lbs
|
