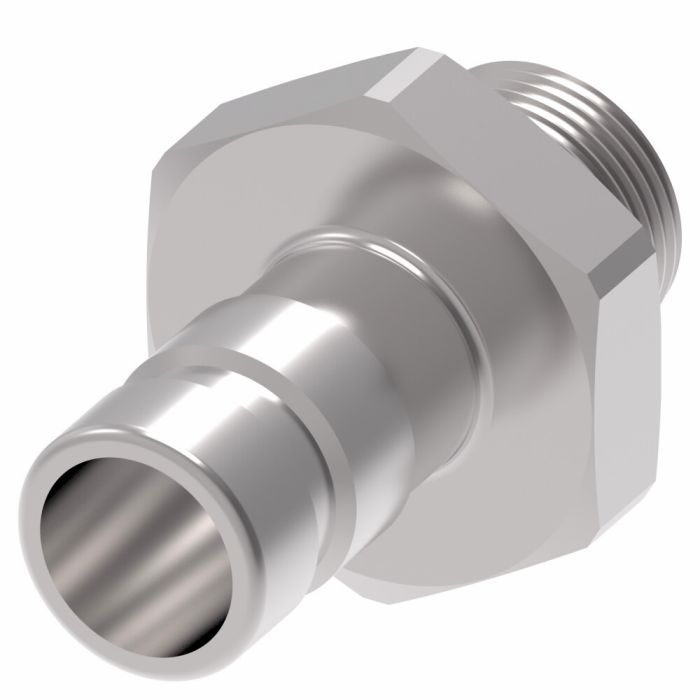

Designed for diagnostic pressure testing in hydraulic systems, this carbon steel Coupling Male Half from Eaton Aeroquip belongs to the Hansen FD90 Series of quick disconnect couplings. It features a push-to-connect end with a 7/16 SAE ORB port, paired with a ball lock internal connection and sleeve lock safety mechanism for reliable engagement and retention.
Buna-N seals support a minimum working temperature of -40°F, and the 2-way valve design maintains flow control during connection and disconnection. With a rated flow of 0.6 gallons per minute, this male half is suited to low-flow diagnostic applications. The FD90 Series meets SAE J1502 interchange standards and exceeds ISO 16028 operating pressure requirements, no special tools required for connect or disconnect.
SKU: FD90-1004-04-04
Supplier Part Number (MPN): FD90-1004-04-04
|
Alternate Part Numbers
MINO-00015X11179
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.44
|
End Type 1
Push to Connect
|
End Type 2
SAE ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
7/16
|
Product Material
Carbon Steel
|
Product Width
0.62
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1004-04-04
|
Valve Type
2 way
|
Product Weight
0.40 lbs
|
