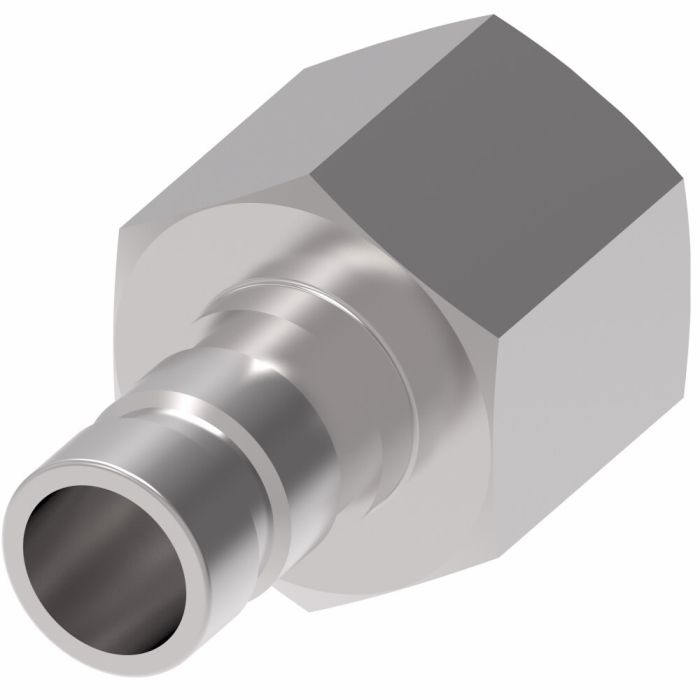

Designed for diagnostic pressure testing in hydraulic systems, this carbon steel male half coupling features a push-to-connect end with a 1/8" NPTF female port and a ball lock internal connection mechanism. A sleeve lock safety feature prevents accidental disconnection during use.
The Danfoss / Eaton Coupling belongs to the Hansen FD90 Series and meets SAE J1502 interchange standards while exceeding ISO 16028 operating pressure requirements. Buna-N seals support a working temperature range starting at -40°F, and the two-way valve design allows flow in both directions. Rated at 0.6 gallons per minute, it connects and disconnects without special tools, making it well suited for test point applications in mobile and stationary hydraulic circuits.
SKU: FD90-1034-02-04
Supplier Part Number (MPN): FD90-1034-02-04
|
Alternate Part Numbers
MINO-00015X11186
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.13
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/8
|
Product Material
Carbon Steel
|
Product Width
0.62
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1034-02-04
|
Valve Type
2 way
|
Product Weight
0.09 lbs
|
