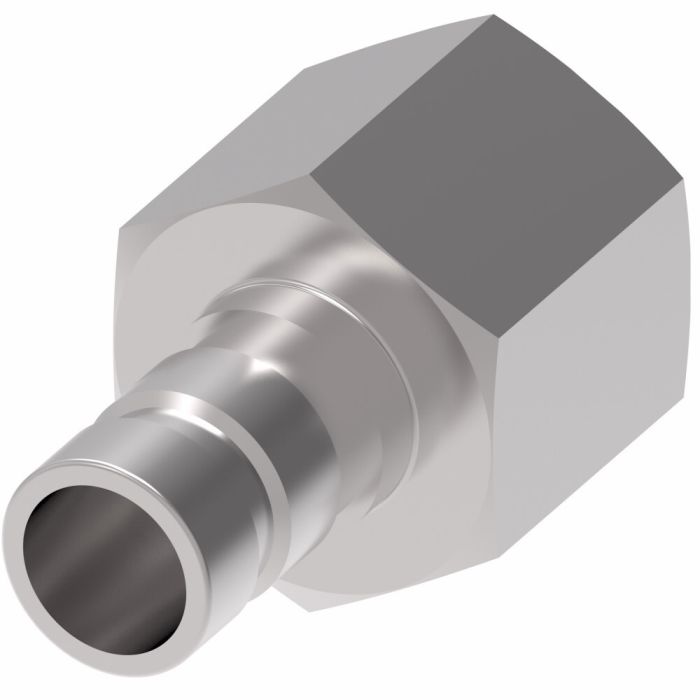

Designed for diagnostic pressure testing in hydraulic systems, this Danfoss / Eaton Coupling is a male half plug from the Hansen FD90 Series, constructed from carbon steel with Buna-N seals rated for use down to -40°F. The push-to-connect end pairs with a 1/4" NPTF female port, and an internal ball lock mechanism with sleeve lock ensures a secure, tool-free connection and disconnection in the field.
Rated to exceed ISO 16028 operating pressures and certified to SAE J1502 interchange standards, the FD90 Series is a reliable choice for hydraulic diagnostic applications where consistent performance and compatibility matter. The two-way valve design supports a flow rate of 0.6 gallons per minute, and the 1/4" port size suits a wide range of standard hydraulic test point connections.
SKU: FD90-1035-04-04
Supplier Part Number (MPN): FD90-1035-04-04
|
Alternate Part Numbers
MINO-00015X11190
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/4
|
Product Material
Carbon Steel
|
Product Width
0.62
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1035-04-04
|
Valve Type
2 way
|
Product Weight
0.14 lbs
|
