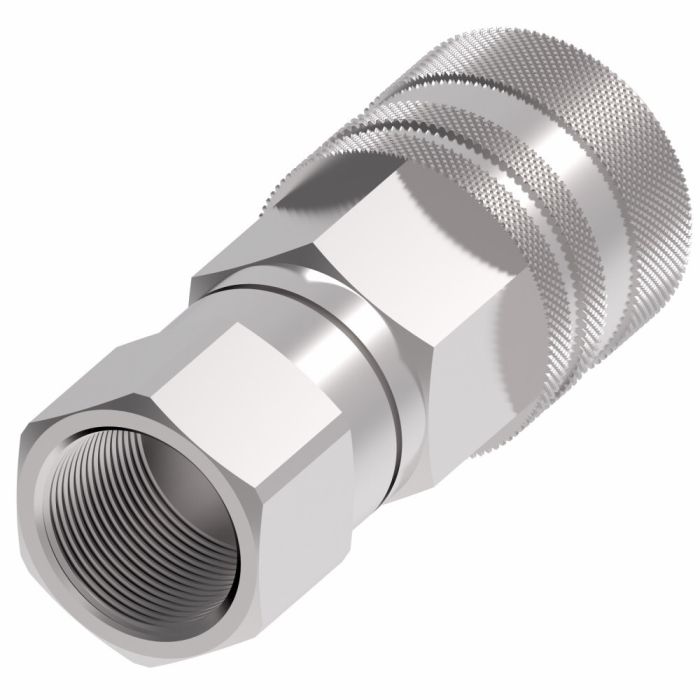

The Eaton Aeroquip diagnostic quick disconnect coupling is suitable for diagnostic pressure testing within hydraulic systems. The female half coupling features a push-to-connect end, as well as a sleeve lock safety mechanism.
This diagnostic coupling exceeds ISO 16028 operating pressures and conforms to SAE J1502 interchange standards. The carbon steel coupling utilizes Buna-N seals and has a 7/16 port size.
The Danfoss / Eaton DIAGNOSTIC COUP F HLF offers quick connect and disconnect without the need for special tools.
SKU: FD90-1041-04-04
Supplier Part Number (MPN): FD90-1041-04-04
|
Alternate Part Numbers
MINO-00015X11192
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.44
|
End Type 1
Push to Connect
|
End Type 2
SAE ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
7/16
|
Product Material
Carbon Steel
|
Product Width
0.75
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1041-04-04
|
Valve Type
2 way
|
Product Weight
0.26 lbs
|
