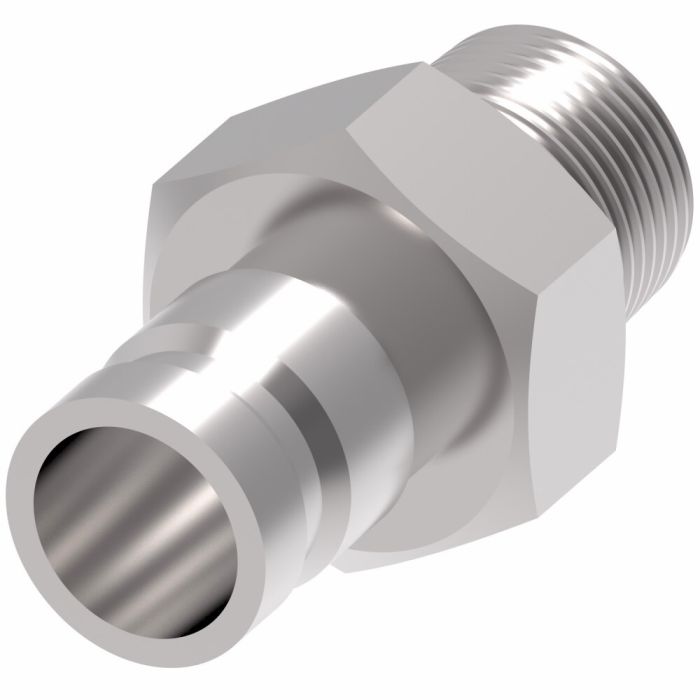

Expertly designed for diagnostic pressure testing in hydraulic systems, the Danfoss / Eaton Coupling ensures seamless integration with its quick connect and disconnect functionality. Constructed from durable carbon steel, this coupling features a robust ball lock internal connection type and a sleeve lock safety mechanism for secure use. It supports a flow rate of 0.6 gallons per minute, making it highly efficient for demanding applications.
With end types featuring a 3/8-inch SAE ORB and a push-to-connect mechanism, this male half coupling promises ease of use and reliability. The coupling is certified under the SAE J1502 Interchange standard and can withstand minimum working temperatures as low as -40°F. The Buna-N seal material further enhances its resilience, providing excellent fluid compatibility.
SKU: FD90-1044-03-04
Supplier Part Number (MPN): FD90-1044-03-04
|
Alternate Part Numbers
MINO-00015X11193
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
SAE ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
3/8
|
Product Material
Carbon Steel
|
Product Width
0.62
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1044-03-04
|
Valve Type
2 way
|
Product Weight
0.07 lbs
|
