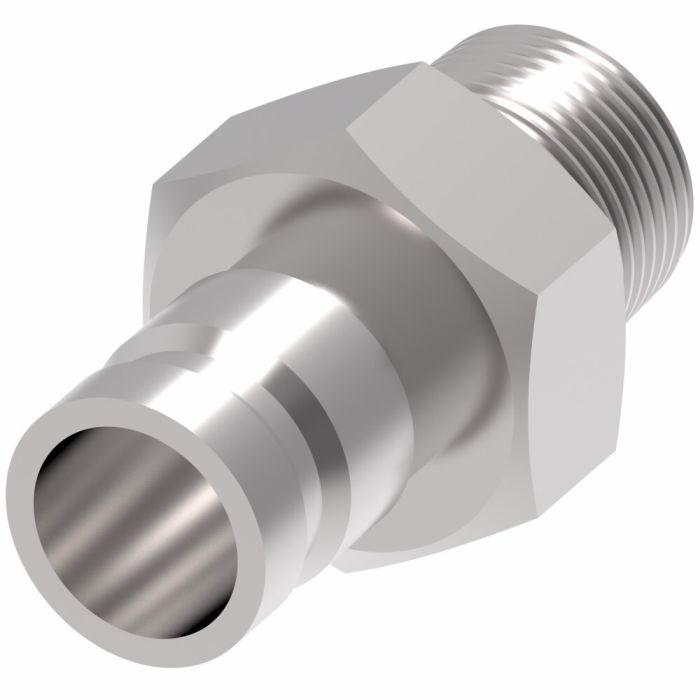

Ideal for diagnostic pressure testing in hydraulic systems, the Diagnostic QD PLUG #5 M-SAE ensures efficient and reliable performance. Crafted from durable carbon steel, this plug offers robust strength and longevity. It features a push-to-connect male end and a secure SAE ORB end, guaranteeing a seamless connection and disconnection process without the need for special tools. The plug is designed to exceed ISO 16028 operating pressures, providing exceptional reliability under demanding conditions.
This Hansen sub-brand component incorporates a sleeve lock safety mechanism and a ball lock internal connection type, ensuring secure engagement during testing. With a flow rate of 0.6 gallons per minute, it supports efficient fluid handling. The seal is made from Buna-N material, known for its excellent resistance to hydraulic fluids, further enhancing its suitability for industrial applications. Certified to meet SAE J1502 interchange standards, this plug is engineered for compatibility and performance.
SKU: FD90-1044-05-04
Supplier Part Number (MPN): FD90-1044-05-04
|
Alternate Part Numbers
MINO-00015X11195
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
SAE ORB
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/2
|
Product Material
Carbon Steel
|
Product Width
0.62
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1044-05-04
|
Valve Type
2 way
|
Product Weight
0.05 lbs
|
