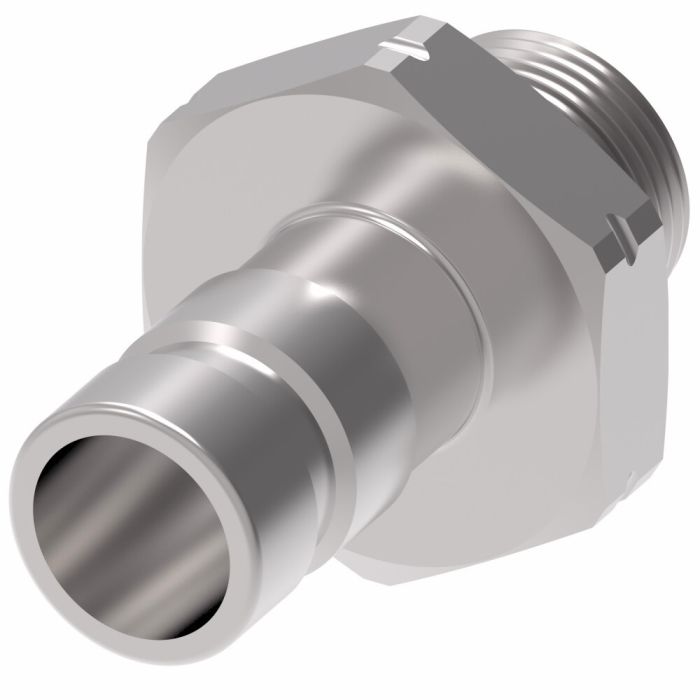

Designed for diagnostic pressure testing in hydraulic systems, this carbon steel male plug uses a push-to-connect end type and a ball lock internal connection mechanism for reliable, tool-free coupling and release. The sleeve lock safety mechanism helps prevent accidental disconnection under working conditions. With a 9/16-inch port size and ORS female end connection, the Danfoss / Eaton FD90 Series Male Steel Coupling is built to exceed ISO 16028 operating pressure requirements and carries SAE J1502 interchange certification. Buna-N seals provide a dependable fluid barrier, and the unit is rated for operating temperatures as low as -40°F. The two-way valve configuration supports both pressure and return line applications across a range of hydraulic test setups.
SKU: FD90-1061-04-04
Supplier Part Number (MPN): FD90-1061-04-04
|
Alternate Part Numbers
MINO-00015X11201
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.56
|
End Type 1
Push to Connect
|
End Type 2
ORS
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
9/16
|
Product Material
Carbon Steel
|
Product Width
0.87
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1061-04-04
|
Valve Type
2 way
|
Product Weight
0.14 lbs
|
