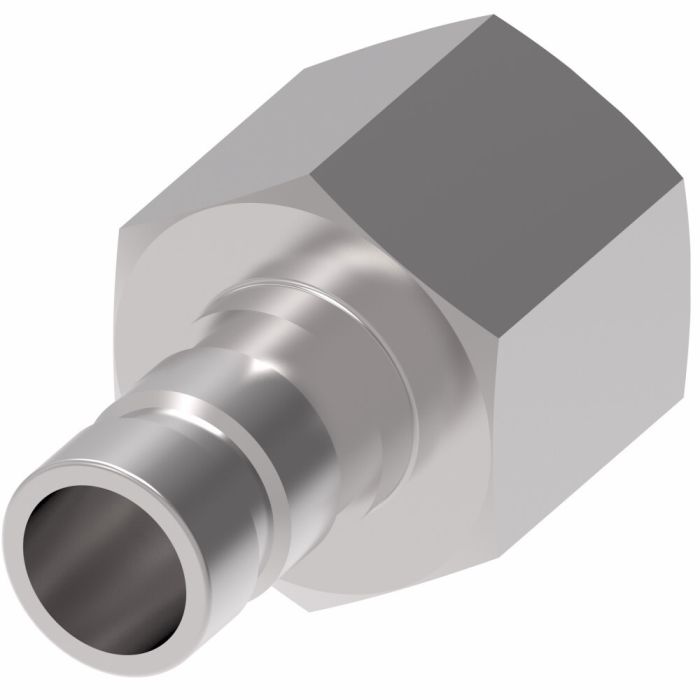

Designed for diagnostic pressure testing in hydraulic systems, the Cplng, FD90 Series Male is a carbon steel male half coupling built to handle demanding conditions. It features a push-to-connect end with a ball lock mechanism and sleeve lock safety, paired with an O-ring face seal (ORS) female port sized at 13/16 inches. Buna-N seals provide reliable fluid compatibility across a wide temperature range, with a minimum working temperature rating of -40°F.
Certified to SAE J1502 interchange standards and exceeding ISO 16028 operating pressures, this Hansen-branded coupling connects and disconnects quickly without special tools. The two-way valve design supports a rated flow of 0.6 gallons per minute, making it well suited for test point and diagnostic applications in hydraulic circuits. Carbon steel construction delivers durability in industrial service environments.
SKU: FD90-1061-08-04
Supplier Part Number (MPN): FD90-1061-08-04
|
Alternate Part Numbers
MINO-00015X11203
|
Application
Diagnostic pressure testing for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Class
WEB-ITEM
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.81
|
End Type 1
Push to Connect
|
End Type 2
ORS
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
13/16
|
Product Material
Carbon Steel
|
Product Width
0.94
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1061-08-04
|
Valve Type
2 way
|
Product Weight
0.12 lbs
|
