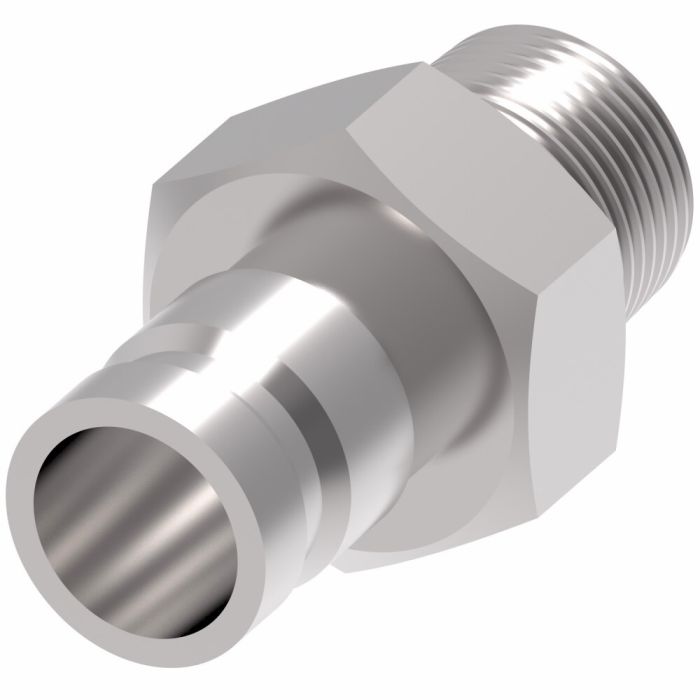

This Danfoss / Eaton coupling is a male half quick disconnect socket from the Hansen FD90 series. Designed for diagnostic pressure testing in hydraulic systems, it meets SAE J1502 interchange standards.
Constructed from carbon steel with nitrile seals, the coupling features a sleeve lock safety mechanism, a ball lock internal connection, and a 2-way valve type. It is designed with male SAE and ORS ends, both sized at 9/16" (0.5625"). This coupling ensures quick connect and disconnect functionality without the need for special tools, and exceeds ISO 16028 operating pressures. It operates at a flow rate of 0.6 gallons per minute and can withstand a minimum working temperature of -4 degrees Fahrenheit.
SKU: FD90-1206-04-04
Supplier Part Number (MPN): FD90-1206-04-04
|
Alternate Part Numbers
MINO-00015X11206
|
Application
Diagnostic pressuretesting for hydraulic systems
|
Certifications
SAE J1502 Interchange
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.56
|
End Size 2
0.56
|
End Type 1
SAE
|
End Type 2
ORS
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
Port Size
9/16
|
Product Material
Carbon Steel
|
Product Width
0.81
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Nitrile
|
Sub Brand
Hansen
|
Supplier Part Number
FD90-1206-04-04
|
Valve Type
2 way
|
Product Weight
0.07 lbs
|
