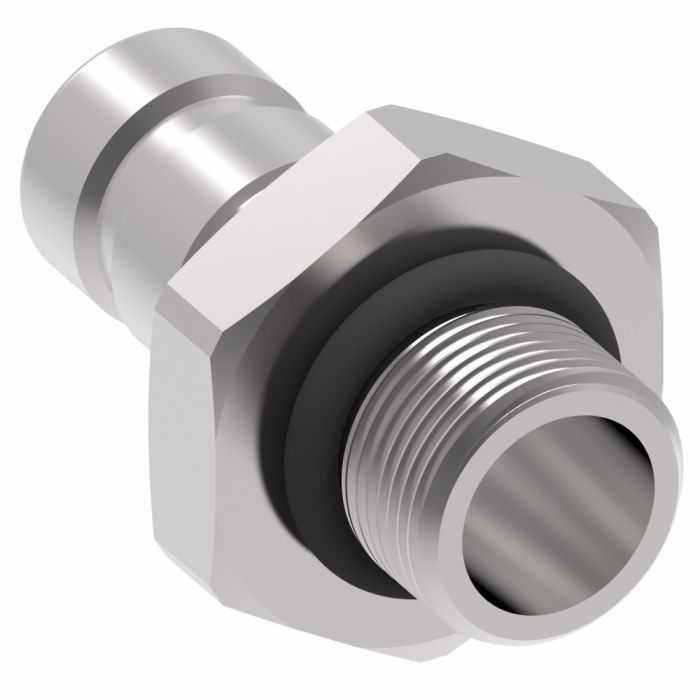

FD90 Series SAE J1502 Interchange Diagnostic Quick Disconnect, Male Half, -04 Coupling, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring)

The Aeroquip FD90 Series Diagnostic Quick Disconnects engineered by Danfoss Power Solutions are specifically designed for diagnostic pressure testing in hydraulic systems. The male half coupling featuring a 9/16-18 SAE O-Ring Boss thread ensures a secure and efficient connection for any industrial application.

With a minimal fluid loss of 0.10 cubic centimeters and an air inclusion rate of 0.02 cubic centimeters this quick disconnect coupling enhances the accuracy of system diagnostics. The automatic sleeve lock mechanism allows for easy one-hand push-to-connect operation simplifying connections and disconnections even under challenging conditions.

The standard seal made from Buna-N material provides reliable performance across a broad temperature range from -40 degrees Celsius ensuring versatility in demanding environments. The 2-way valve type and flush face valving minimize contamination and maintain system integrity during testing.

Constructed from zinc-plated steel this diagnostic quick disconnect coupling offers durability and resistance to wear making it a dependable choice for various industrial setups. The push-to-connect end type and self-sealing valve design facilitate quick and secure connections up to 500 psi.

MPN: FD90-1044-06-04

Supplier Part Number: FD90-1044-06-04
