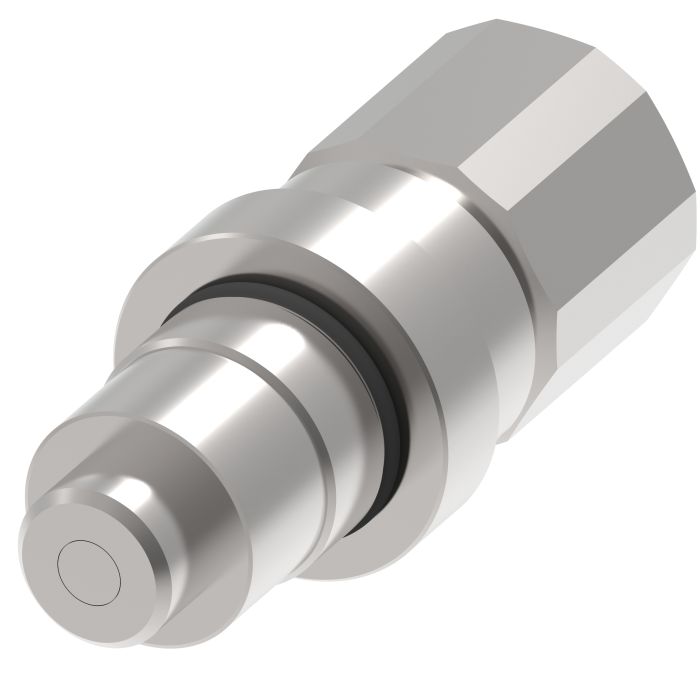

main product photo

DANFOSS / EATON COUPLING

Ask A Question

Description & Features

This carbon steel, male half DANFOSS / EATON COUPLING is part of the Hansen FD96 series and designed for quick connect and disconnect applications without the need for special tools. It is suitable for hydraulic fluid transfer, high impulse hydraulics, oil field, and mining applications.

Featuring a 3/8 inch port size, this coupling has a 6.1 GPM flow rate and operates effectively in temperatures as low as -40 degrees. It exceeds ISO 16028 operating pressures and includes thread to connect internal connection.

SKU: FD96-1002-06-06

Supplier Part Number (MPN): FD96-1002-06-06

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
FNPT
Connection Type 1
Female NPT
Connection Type 2
Female NPT
Dimension Standards
SAE J1502
Dimensions
3-1/4 in L
Finish
Zinc-Plated
Fitting Type
Coupling
Hex Size
1.06 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FD96 Series
Thread Size
3/8-18
Valve Type
2-Way

Product Questions & Answers (1)

Question by: Kirk W on Apr 10, 2025, 9:47 AM
Reckon this'll hold up to some decent pressure in an oil field environment?
Answer by: Customer Support on Apr 12, 2025, 6:23 AM
this coupling is definitely up for that. It's designed to handle the high-pressure demands you find in oil field applications, plus mining and high-impulse hydraulics.
