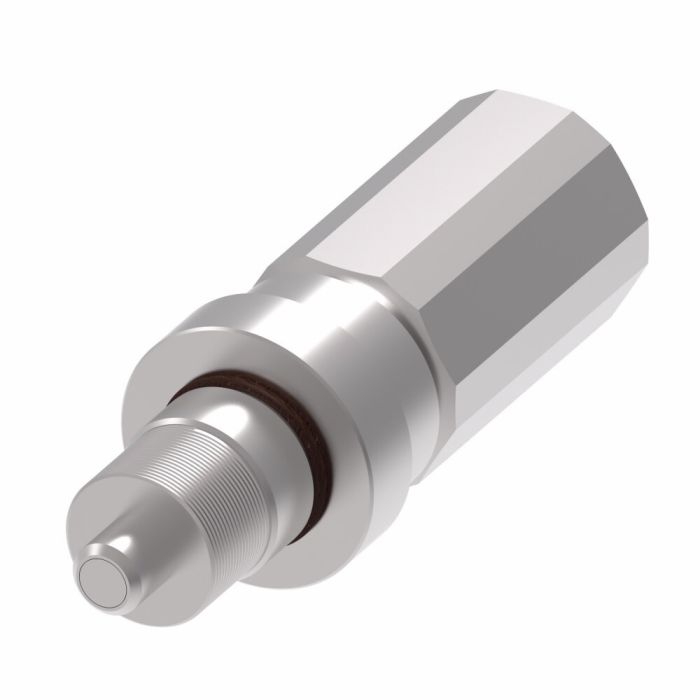

This carbon steel quick disconnect coupling is part of the Danfoss / Eaton Hansen FD96 Series. It is designed for hydraulic fluid transfer in demanding applications, including high impulse hydraulics, oil field use, and mining equipment.
Featuring a thread-to-connect internal connection type, this male half coupling offers quick connect and disconnect functionality, eliminating the need for special tools. It exceeds ISO 16028 operating pressures and supports a flow rate of 6.1 gallons per minute. The coupling has a port size of 3/4" with UNF end type and can withstand minimum working temperatures down to -40 degrees.
SKU: FD96-1005-08-06
Supplier Part Number (MPN): FD96-1005-08-06
|
Alternate Part Numbers
MINO-00015X11238
|
Application
Hydraulic fluid transfer,High impulse hydraulics,Oil field,Mining
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Thread to Connect
|
End Type 2
UNF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
6.1 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Thread to Connect
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Port Size
3/4
|
Product Material
Carbon Steel
|
Product Width
1.49
|
Sub Brand
Hansen
|
Supplier Part Number
FD96-1005-08-06
|
Valve Type
2 way
|
Product Weight
2.70 lbs
|
