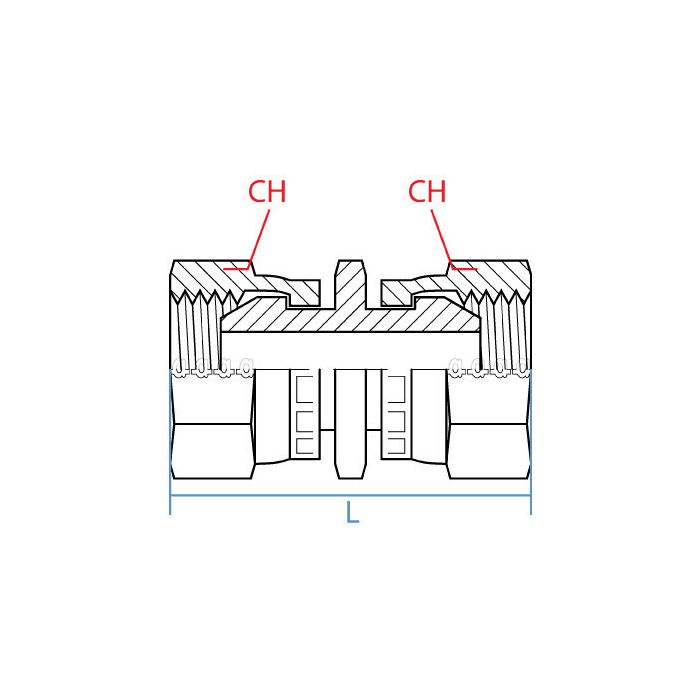

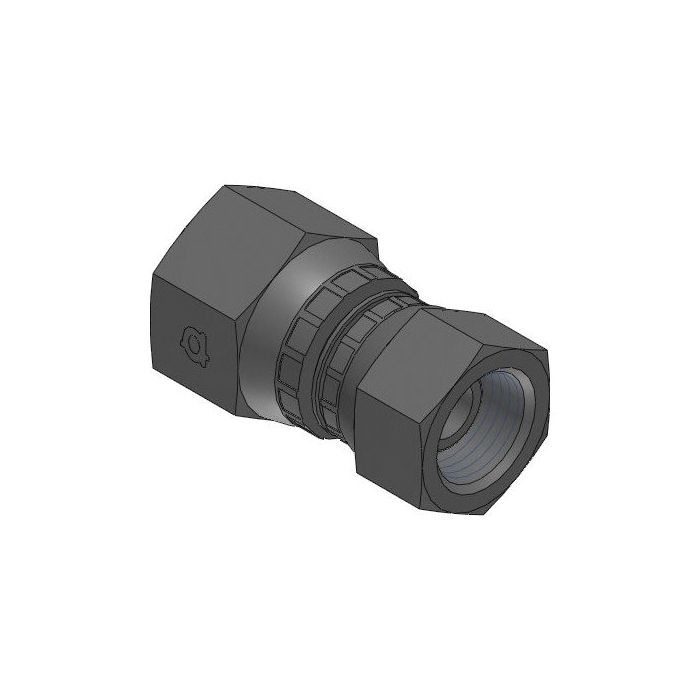

Female Bspp Swivel X Swivel

Ask A Question

Description & Features

Constructed from steel, this straight adapter provides dual female BSPP swivel connections in a reducer configuration. Side one accepts a G 1/2 - 14 (1/2") female BSPP swivel connection, while side two accommodates a G 1/4 - 19 (1/4") female BSPP swivel connection, making it well suited for transitioning between two different line sizes within a hydraulic circuit.

The Female BSPP Swivel X Swivel is an Adaptall fitting, compatible with Adaptall's modular assembly system. The swivel design on both ends allows for easier installation and repositioning without disturbing connected lines. Steel construction provides the durability expected in hydraulic and industrial fluid power applications.

SKU: 9025-08-04

Supplier Part Number (MPN): 9025-08-04

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
Female BSP Swivel
Connection Type 1
Female BSPP 60 deg Flare Swivel
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200
Dimensions
37.5 mm L
Finish
Zinc-Plated
Fitting Type
Union
Hex Size
19 x 27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9025 Series
Thread Size
1/4-19 x 1/2-14

Product Questions & Answers (1)

Question by: Steve F on Aug 4, 2025, 1:33 PM
Hey, would this here fitting work to hook up a half-inch line to a quarter-inch one?
Answer by: Customer Support on Aug 5, 2025, 8:51 PM
For hydraulic systems needing a transition, this adapter connects a 1/2" female BSPP swivel to a 1/4" female BSPP swivel.
