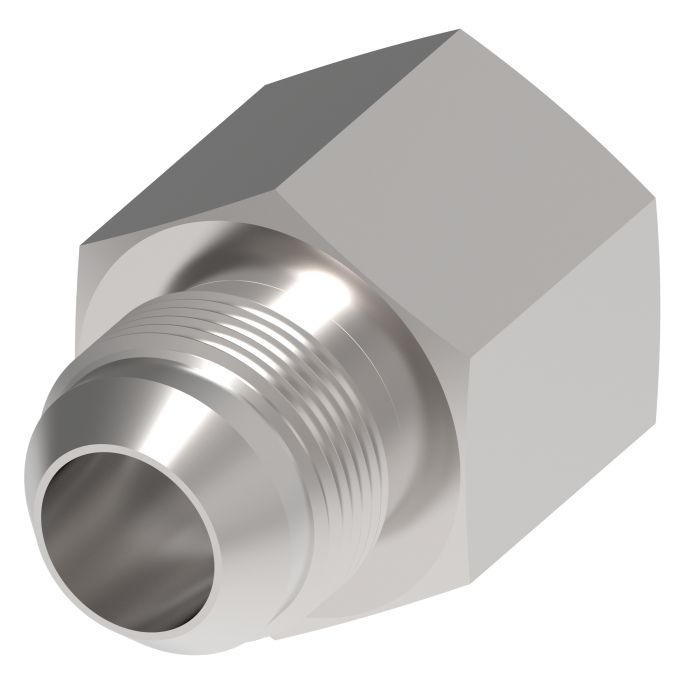

main product photo

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

This Eaton Aeroquip steel adapter provides a reliable connection between dissimilar hydraulic fittings. This straight adapter converts a 3/4-14 female NPT port to a 1-1/16-12 male JIC 37-degree flare.

Designed for demanding applications, this adapter is suitable for use in marine and military environments, as well as chemical, pulp and paper, and food and beverage processing industries. It is also a dependable choice for off-shore drilling.

SKU: 2022-12-12S

Supplier Part Number (MPN): 2022-12-12S

Alternate Part Numbers: 20011372, C1AV41, MI-00312075, MINO-00015F61360

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female NPTF
Dimension Standards
SAE 070103/J514
Dimensions
2.06 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
1-3/8 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Series
2022 Series
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Curt M on Nov 27, 2025, 7:02 PM
got a hose end that’s 1-1/16-12 JIC male, and the port on the manifold is 3/4-14 female npt. is this the straight adapter to tie those together
Answer by: Customer Support on Nov 29, 2025, 6:35 AM
Function-wise, it’s a straight adapter that connects a 3/4-14 female NPTF pipe side to a 1-1/16-12 male JIC 37 degree flare side. It’s part of the Eaton Aeroquip 2022 Series NPTF internal pipe to SAE 37 degree flare adapters.
