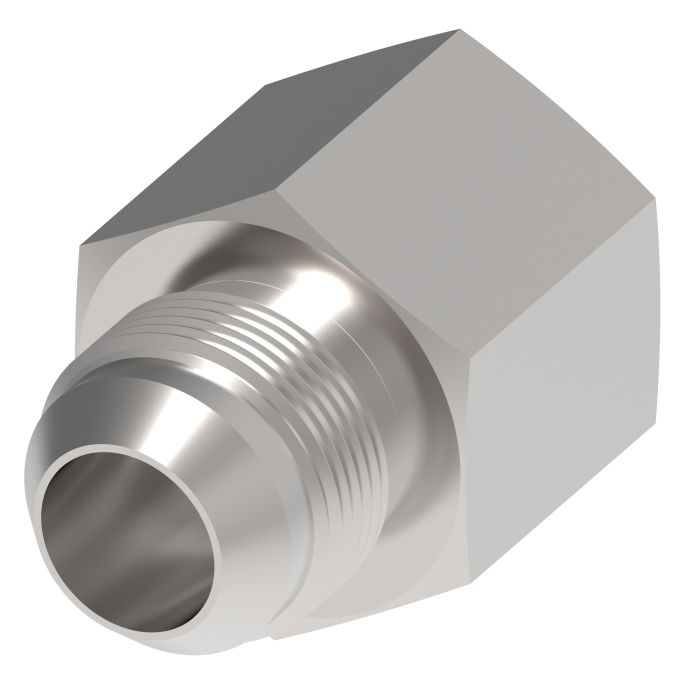

Steel Adapter, 1/2-14 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

This straight steel adapter features a 1/2-14 Female NPT to 9/16-18 Male JIC 37 deg Flare connection. Suitable for applications including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling. The adapter's End 1 is female NPTF with a 0.5 size, while End 2 is male SAE 37 with a 0.5625 size.

This Pipe to 37° Flare Steel Adapters product, catalog number C1AV63, has a minimum working temperature of -40 degrees. The hex size 2 measures 0.866. Thread 1 is 1/2-14 and Thread 2 is 9/16-18.

SKU: 2022-8-6S

Supplier Part Number (MPN): 2022-8-6S

Alternate Part Numbers: C1AV63, MI-00312027, MINO-00015F61352

Specifications

A
1.69
Alternate Part Numbers
Alternate Part Number C1AV63, Alternate Part Number MI-00312027, Alternate Part Number MINO-00015F61352
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.50
End Size 2
0.56
End Type 1
NPTF
End Type 2
SAE 37
Hex Size 2
0.87
Minimum Working Temperature
-40
Supplier Part Number
2022-8-6S
Thread 1
1/2-14
Thread 2
9/16-18
Thread Sealant
No
Tube O.D.
0.38
Tube O.D.
0.38
Product Weight
0.24 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male JIC 37 deg Flare, Straight

2022-20-20S Female NPT To Male JIC Adapter

1.25

1-1/4-11-1/2

1-5/8-12

2.49

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

2022-4-4S Female NPT To Male JIC Adapter

0.25

1/4-18

7/16-20

1.39

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

2022-4-6S Female NPT To Male JIC Adapter

0.38

1/4-18

9/16-18

1.4

Steel Adapter, 1/4-18 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-4-8S Female NPT To Male JIC Adapter

0.5

1/4-18

3/4-16

1.55

Steel Adapter, 3/8-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

2022-6-6S Female NPT To Male JIC Adapter

0.38

3/8-18

9/16-18

1.46

Steel Adapter, 3/4-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, Straight

2022-12-10S Female NPT To Male JIC Adapter

0.63

3/4-14

7/8-14

1.59

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight

2022-12-12S Female NPT To Male JIC Adapter

0.75

3/4-14

1-1/16-12

2.06

Steel Adapter, 3/4-14 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, Straight

2022-12-16S Female NPT To Male JIC Adapter

1

3/4-14

1-5/16-12

1.78

Steel Adapter, 3/4-14 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-12-8S Female NPT To Male JIC Adapter

0.5

3/4-14

3/4-16

1.85

Steel Adapter, 1-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, Straight

2022-16-16S Female NPT To Male JIC Adapter

1

1-11-1/2

1-5/16-12

2.35

Steel Adapter, 1/8-27 Female NPT To 3/8-24 Male JIC 37 deg Flare, Straight

2022-2-3S Female NPT To Male JIC Adapter

0.19

1/8-27

3/8-24

0.72

Steel Adapter, 1/8-27 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

2022-2-4S Female NPT To Male JIC Adapter

0.25

1/8-27

7/16-20

1.19

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, Straight

2022-20-16S Female NPT To Male JIC Adapter

1

1-1/4-11-1/2

1-5/16-12

2.38

Steel Adapter, 1-1/2-11-1/2 Female NPT To 1-7/8-12 Male JIC 37 deg Flare, Straight

2022-24-24S Female NPT To Male JIC Adapter

1.5

1-1/2-11-1/2

1-7/8-12

2.62

Steel Adapter, 2-11-1/2 Female NPT To 2-1/2-12 Male JIC 37 deg Flare, Straight

2022-32-32S Female NPT To Male JIC Adapter

2

2-11-1/2

2-1/2-12

3

Steel Adapter, 1/4-18 Female NPT To 1/2-20 Male JIC 37 deg Flare, Straight

2022-4-5S Female NPT To Male JIC Adapter

0.31

1/4-18

1/2-20

1.39

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-6-8S Female NPT To Male JIC Adapter

0.5

3/8-18

3/4-16

1.56

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, Straight

2022-8-10S Female NPT To Male JIC Adapter

0.63

1/2-14

7/8-14

1.89

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight

2022-8-12S Female NPT To Male JIC Adapter

0.75

1/2-14

1-1/16-12

2.05

Steel Adapter, 1/2-14 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

2022-8-4S Female NPT To Male JIC Adapter

0.25

1/2-14

7/16-20

1.47

Steel Adapter, 1/2-14 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

2022-8-6S Female NPT To Male JIC Adapter

0.38

1/2-14

9/16-18

1.69

Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-8-8S Female NPT To Male JIC Adapter

0.5

1/2-14

3/4-16

1.79

Steel Adapter, 3/8-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

2405-04-06 Female NPT To Male JIC Adapter

0.25

3/8-18

7/16-20

1.43

Steel Adapter, 3/8-18 Female NPT To 5/16-24 Male JIC 37 deg Flare, Straight

2405-06-02 Female NPT To Male JIC Adapter

0.13

3/8-18

5/16-24

1.18

Steel Adapter, 1-11-1/2 Female NPT To 1-5/8-12 Male JIC 37 deg Flare, Straight

2405-20-16 Female NPT To Male JIC Adapter

1.25

1-11-1/2

1-5/8-12

2.4

Product Questions & Answers (1)

Question by: Vince M on Sep 3, 2025, 11:56 AM
Will this adapter work alright for connecting a pressure gauge to a hydraulic pump?
Answer by: Customer Support on Sep 4, 2025, 9:24 PM
This Eaton Aeroquip adapter is commonly used in hydraulic systems, including pumps. It's made for applications like chemical processing and off-shore drilling, so it should hold up just fine with the pressures you'd find in a hydraulic setup.
