main product photo

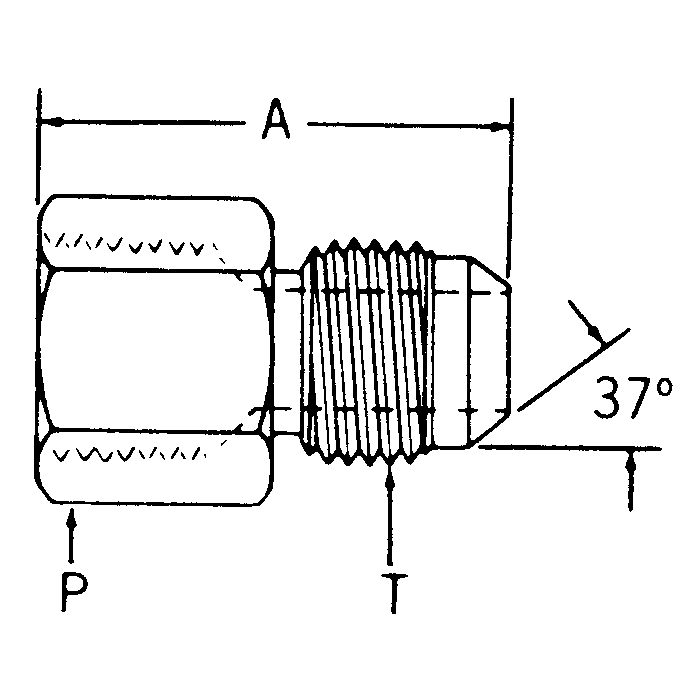

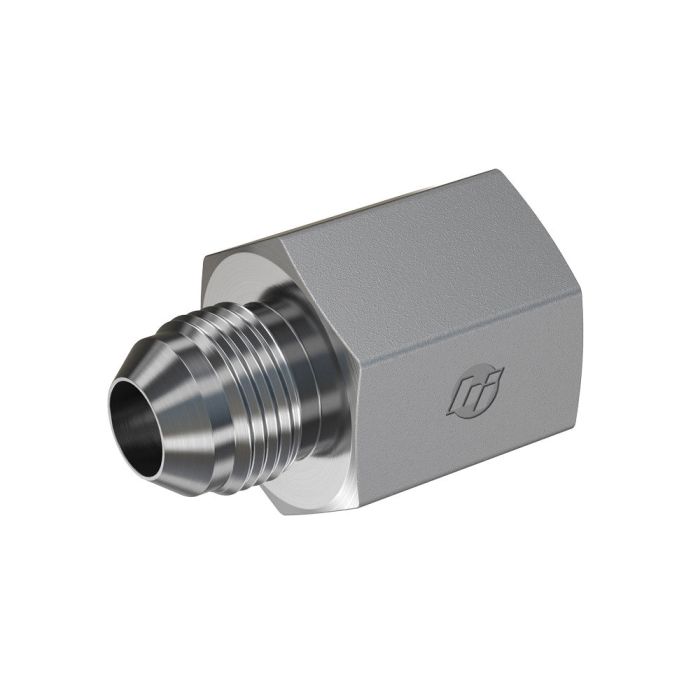

Steel Adapter, 3/8-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

The BRENNAN INDUSTRIES INC Female NPT To Male JIC Adapter 2405-04-06 is an essential component for connecting various industrial fluid transfer systems. Crafted from high-quality steel, this adapter is designed to provide a reliable and secure connection between a 3/8-18 Female NPT and a 7/16-20 Male JIC 37-degree flare fitting.

This adapter is suitable for applications that require robust performance under high-pressure conditions. Engineered for precision, the threads on both ends ensure a tight and leak-free fit, maintaining the integrity of the system.

With a tube outer diameter of 0.25, this adapter meets rigorous industry standards for reliability and durability, making it a trusted choice for demanding industrial settings.

MPN: C1BF69

Supplier Part Number: 2405-04-06

Specifications

Brand
BRENNAN
a Dimensions
1.43 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female NPTF
Dimension Standards
SAE J514/J476
Dimensions
1.45 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2405 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20 x 3/8-18
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 A Price Action
Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male JIC 37 deg Flare, Straight

2022-20-20S Female NPT To Male JIC Adapter

1.25

1-1/4-11-1/2, 1-5/8-12

1-5/8-12

2.49

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

2022-4-4S Female NPT To Male JIC Adapter

0.25

7/16-20, 1/4-18

7/16-20

1.39

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

2022-4-6S Female NPT To Male JIC Adapter

0.38

1/4-18 x 9/16-18

9/16-18

1.4

Steel Adapter, 1/4-18 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-4-8S Female NPT To Male JIC Adapter

0.5

3/4-16, 1/4-18

3/4-16

1.55

Steel Adapter, 3/8-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

2022-6-6S Female NPT To Male JIC Adapter

0.38

3/8-18, 9/16-18

9/16-18

1.46

Steel Adapter, 3/4-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, Straight

2022-12-10S Female NPT To Male JIC Adapter

0.63

3/4-14, 7/8-14

7/8-14

1.59

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight

2022-12-12S Female NPT To Male JIC Adapter

0.75

1-1/16-12 x 3/4-14

1-1/16-12

2.06

Steel Adapter, 3/4-14 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, Straight

2022-12-16S Female NPT To Male JIC Adapter

1

3/4-14, 1-5/16-12

1-5/16-12

1.78

Steel Adapter, 3/4-14 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-12-8S Female NPT To Male JIC Adapter

0.5

3/4-16 x 3/4-14

3/4-16

1.85

Steel Adapter, 1-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, Straight

2022-16-16S Female NPT To Male JIC Adapter

1

1-5/16-12 x 1-11-1/2 x 1-5/16-12

1-5/16-12

2.35

Steel Adapter, 1/8-27 Female NPT To 3/8-24 Male JIC 37 deg Flare, Straight

2022-2-3S Female NPT To Male JIC Adapter

0.19

3/8-24 x 1/8-27

3/8-24

0.72

Steel Adapter, 1/8-27 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

2022-2-4S Female NPT To Male JIC Adapter

0.25

1/8-27, 7/16-20

7/16-20

1.19

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, Straight

2022-20-16S Female NPT To Male JIC Adapter

1

1-5/16-12 x 1-1/4-11-1/2

1-5/16-12

2.38

Steel Adapter, 1-1/2-11-1/2 Female NPT To 1-7/8-12 Male JIC 37 deg Flare, Straight

2022-24-24S Female NPT To Male JIC Adapter

1.5

1-7/8-12, 1-1/2-11-1/2

1-7/8-12

2.62

Steel Adapter, 2-11-1/2 Female NPT To 2-1/2-12 Male JIC 37 deg Flare, Straight

2022-32-32S Female NPT To Male JIC Adapter

2

2-1/2-12 x 2-11-1/2

2-1/2-12

3

Steel Adapter, 1/4-18 Female NPT To 1/2-20 Male JIC 37 deg Flare, Straight

2022-4-5S Female NPT To Male JIC Adapter

0.31

1/2-20 x 1/4-18

1/2-20

1.39

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-6-8S Female NPT To Male JIC Adapter

0.5

3/4-16 x 3/8-18

3/4-16

1.56

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, Straight

2022-8-10S Female NPT To Male JIC Adapter

0.63

1/2-14 x 7/8-14

7/8-14

1.89

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight

2022-8-12S Female NPT To Male JIC Adapter

0.75

1-1/16-12 x 1/2-14

1-1/16-12

2.05

Steel Adapter, 1/2-14 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

2022-8-4S Female NPT To Male JIC Adapter

0.25

7/16-20, 1/2-14

7/16-20

1.47

Steel Adapter, 1/2-14 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

2022-8-6S Female NPT To Male JIC Adapter

0.38

1/2-14 x 9/16-18

9/16-18

1.69

Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

2022-8-8S Female NPT To Male JIC Adapter

0.5

3/4-16 x 1/2-14

3/4-16

1.79

Steel Adapter, 3/8-18 Female NPT To 5/16-24 Male JIC 37 deg Flare, Straight

2405-06-02 Female NPT To Male JIC Adapter

0.13

9/16-18 x 1/8-27

5/16-24

1.18

Steel Adapter, 1-11-1/2 Female NPT To 1-5/8-12 Male JIC 37 deg Flare, Straight

2405-20-16 Female NPT To Male JIC Adapter

1.25

1-5/8-12 x 1-11-1/2

1-5/8-12

2.4

Product Questions & Answers (3)

Question by: Diane W on Jul 24, 2025, 8:15 AM
fitting's got a 3/8 NPT female end on it -- does that mean it'll thread straight onto a standard pipe port without needing any kind of bushing or reducer in between?
Answer by: Customer Support on Jul 25, 2025, 7:33 PM
A 3/8-18 NPT female threads directly onto a standard 3/8 NPT male pipe port, no bushing or reducer needed. The male JIC end on the other side is a 7/16-20 with a 37-degree flare seat, so whatever line or fitting you're connecting there needs to match that spec. At 1.43 inches long it's a compact straight adapter, which makes it easy to work into tighter hydraulic connections runs without a lot of extra bulk.
Question by: Vince J on Jul 23, 2025, 3:04 PM
got a hose end that’s 7/16-20 JIC, will this adapter screw right onto it and still let me go into 3/8-18 NPT?
Answer by: Customer Support on Jul 25, 2025, 12:19 PM
For tying two common fitting styles together, this adapter gives you a 7/16-20 male JIC 37 degree flare on one side and a 3/8-18 female NPT on the other, in a straight steel body.
Question by: Jerry G on Sep 6, 2025, 6:02 AM
Will this adapter hold up okay in a hydraulic system that sees some pretty high pressures?
Answer by: Customer Support on Sep 7, 2025, 6:11 AM
This adapter is crafted from high-quality steel, which should provide a reliable and secure connection even under high-pressure conditions commonly found in industrial fluid transfer systems.
