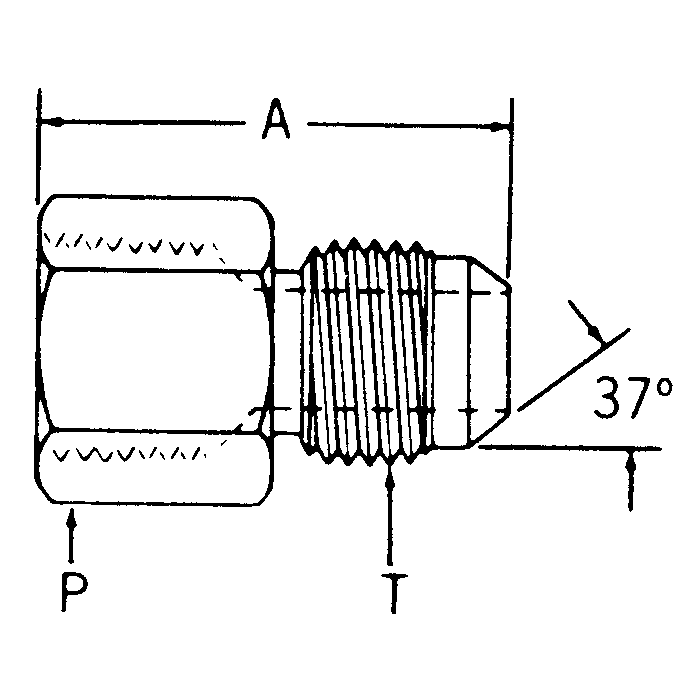

Steel Adapters, Female NPT To Male JIC 37 deg Flare, Straight

Description & Features

Products

Model Number	Tube O.D.	Thread 1	Thread 2	A
2022-20-20S Female NPT To Male JIC Adapter	1.25	1-1/4-11-1/2	1-5/8-12	2.49
2022-4-4S Female NPT To Male JIC Adapter	0.25	1/4-18	7/16-20	1.39
2022-4-6S Female NPT To Male JIC Adapter	0.38	1/4-18	9/16-18	1.4
2022-4-8S Female NPT To Male JIC Adapter	0.5	1/4-18	3/4-16	1.55
2022-6-6S Female NPT To Male JIC Adapter	0.38	3/8-18	9/16-18	1.46
2022-12-10S Female NPT To Male JIC Adapter	0.63	3/4-14	7/8-14	1.59
2022-12-12S Female NPT To Male JIC Adapter	0.75	3/4-14	1-1/16-12	2.06
2022-12-16S Female NPT To Male JIC Adapter	1	3/4-14	1-5/16-12	1.78
2022-12-8S Female NPT To Male JIC Adapter	0.5	3/4-14	3/4-16	1.85
2022-16-16S Female NPT To Male JIC Adapter	1	1-11-1/2	1-5/16-12	2.35
2022-2-3S Female NPT To Male JIC Adapter	0.19	1/8-27	3/8-24	0.72
2022-2-4S Female NPT To Male JIC Adapter	0.25	1/8-27	7/16-20	1.19
2022-20-16S Female NPT To Male JIC Adapter	1	1-1/4-11-1/2	1-5/16-12	2.38
2022-24-24S Female NPT To Male JIC Adapter	1.5	1-1/2-11-1/2	1-7/8-12	2.62
2022-32-32S Female NPT To Male JIC Adapter	2	2-11-1/2	2-1/2-12	3
2022-4-5S Female NPT To Male JIC Adapter	0.31	1/4-18	1/2-20	1.39
2022-6-8S Female NPT To Male JIC Adapter	0.5	3/8-18	3/4-16	1.56
2022-8-10S Female NPT To Male JIC Adapter	0.63	1/2-14	7/8-14	1.89
2022-8-12S Female NPT To Male JIC Adapter	0.75	1/2-14	1-1/16-12	2.05
2022-8-4S Female NPT To Male JIC Adapter	0.25	1/2-14	7/16-20	1.47
2022-8-6S Female NPT To Male JIC Adapter	0.38	1/2-14	9/16-18	1.69
2022-8-8S Female NPT To Male JIC Adapter	0.5	1/2-14	3/4-16	1.79
2405-04-06 Female NPT To Male JIC Adapter	0.25	3/8-18	7/16-20	1.43
2405-06-02 Female NPT To Male JIC Adapter	0.13	3/8-18	5/16-24	1.18
2405-20-16 Female NPT To Male JIC Adapter	1.25	1-11-1/2	1-5/8-12	2.4
