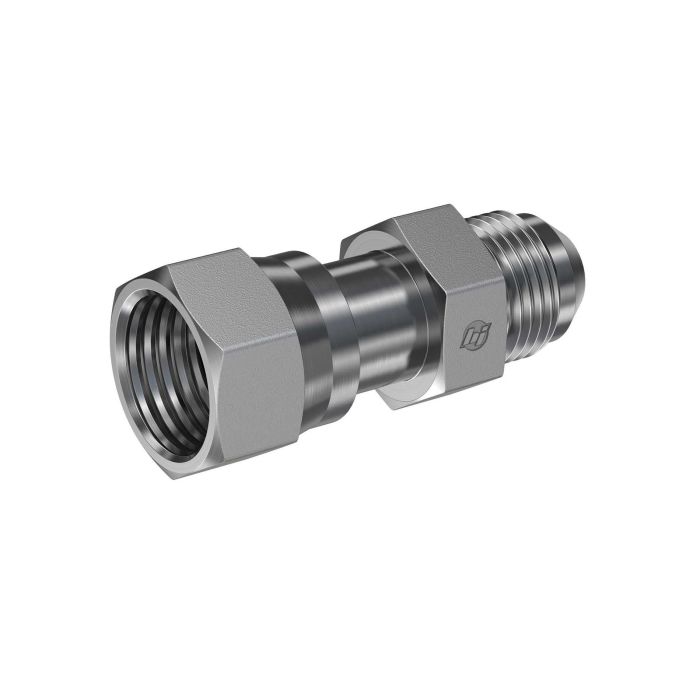

main product photo

Steel Adapter, 1-14 Female O-Ring Face Seal To 7/8-14 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

This high-quality adapter features precision threading with a 1-14 Female O-Ring Face Seal (FORS) and a 7/8-14 Male JIC 37 Flare designed for robust industrial applications. Manufactured by Brennan Industries Inc the product ensures reliable performance in fluid transfer systems.

Crafted from durable steel it offers optimal resistance against corrosion and wear contributing to long term functionality.

Engineered for precise compatibility this adapter supports seamless integration which enhances the integrity of your connections ensuring leak-free performance.

The adapter is ideal for environments requiring dependable sealing providing a consistent and secure connection for high-pressure scenarios.

Its simple and efficient design facilitates easy installation and maintenance reducing downtime and enhancing operational efficiency.

Supplier Part Number: FS6504-10-10

Specifications

Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORFS Swivel, Male JIC
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J1453, SAE J514
Dimensions
2.248 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/16 x 1-1/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
FS6504 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-14 x 1-14 x 7/8-14
Tube Outside Diameter
0.63 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Sheila K on Jun 24, 2025, 4:42 PM
got a hydraulic line running 1-14 ORFS on one end and JIC 37 flare fittings on the other, will this adapter bridge those two without needing extra pieces in between?
Answer by: Customer Support on Jun 26, 2025, 3:46 PM
That's exactly what it's built for. One end is a 1-14 female O-ring face seal, the other is a 7/8-14 male JIC 37-degree flare, all in a single straight body. No extra unions or couplings needed. The ORFS side gives you a solid sealing surface using an O-ring, and the JIC flare end threads directly into a standard male JIC port. Brennan Industries machines these to tight tolerances, so the fit tends to be clean right out of the bag.
Question by: Norm K on Mar 29, 2026, 6:59 PM
Reckon this adapter will hold up alright in a hydraulic setup running around 3000 PSI?
Answer by: Customer Support on Mar 31, 2026, 12:54 PM
Crafted from durable steel, this adapter should provide a secure connection for high-pressure scenarios. Just make sure your system's within the pressure limits for both the O-ring face seal and JIC flare sides.
