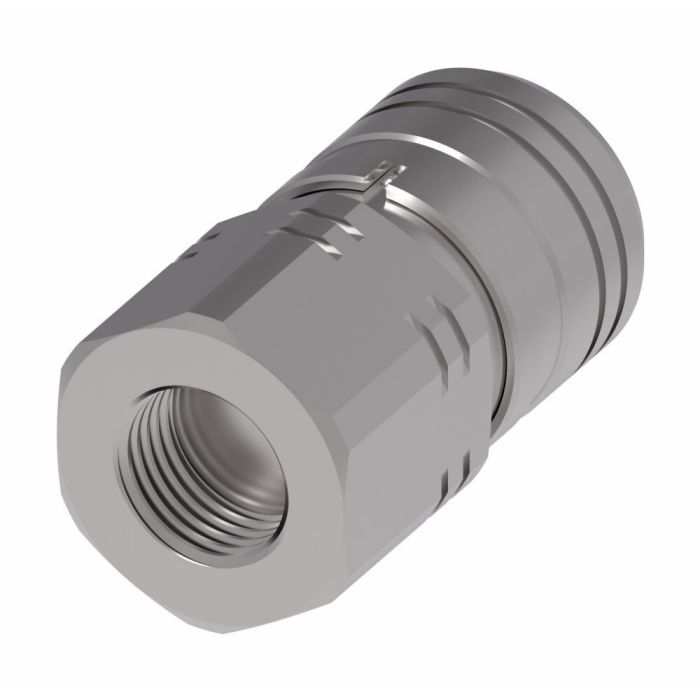

main product photo

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -08 Coupling, 1/4-14 NPT Female Threads

Ask A Question

Description & Features

The Danfoss / Eaton Hansen FF Series Quick Disconnect Couplings Plug is designed for various hydraulic and fluid transfer applications, including construction and agricultural equipment, utility and on-highway vehicles, and stationary in-plant systems. With a globally accepted interface meeting ISO 16028 and HTMA standards, it ensures compatibility and reliable performance.

This female half, -08 coupling features 1/4-14 NPT female threads, quick and easy Push-to-Connect latching, and a safety sleeve lock to prevent accidental disconnections. Dual flush face valves minimize fluid loss and air inclusion, making maintenance straightforward and efficient.

Made with durable NBR+AU seal material, this coupling operates efficiently within a temperature range from -13deg;F to 212deg;F and withstands a torque rating of 43.8 lb/ft.

MPN: C1LA99

Specifications

A
3.27
Air Inclusion Max
0.01 Cubic_centimeter
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
B
1.50
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
0.01 Cubic_centimeter
Minimum Working Temperature
-13
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Supplier Part Number
12FFS50
Thread 1
1/4-14 NPT
Thread Sealant
No
Torque Rating
43.8 lb/ft
Torque Rating
43.8 lb/ft
Alternate Part Numbers
Alternate Part Number C1LA99, Alternate Part Number MI-07705607, Alternate Part Number MINO-00402X00143
Product Weight
1.05 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -06 Coupling, 3/8-18 NPT Female Threads

10FFS37 FF Series Flush Face Coupling

-06

3/8-18 NPT

NBR+AU

2.67

1.26

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -06 Coupling, 1/2-14 NPT Female Threads

10FFS50 FF Series Flush Face Coupling

-06

1/2-14 NPT

NBR+AU

2.79

1.26

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -08 Coupling, -12 SAE Female Threads

12FFS106UN FF Series Flush Face Coupling

-08

-12 SAE

NBR+AU

3.5

1.5

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -08 Coupling, 1/4-14 NPT Female Threads

12FFS50 FF Series Flush Face Coupling

-08

1/4-14 NPT

NBR+AU

3.27

1.5

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -12 Coupling, -12 SAE Female Threads

19FFS106UN FF Series Flush Face Coupling

-12

-12 SAE

NBR+AU

3.8

1.82

FF Series Flush Face Hydraulic Tool Quick Disconnect, Female Half, -06 Coupling, -8 SAE Female Threads

10FFS75UN FF Series Flush Face Coupling

-06

-8 SAE

NBR+AU

2.79

1.26

Product Questions & Answers (3)

Question by: Shane G on Jun 6, 2025, 7:47 PM
got an older utility vehicle that needs a new htma style coupler. trying to figure out if these threads are 1/4 inch NPT
Answer by: Customer Support on Jun 8, 2025, 6:34 AM
Matching your exact thread dimensions is important for a proper seal. The threads on this female half are exactly 1/4-14 NPT and the body interchanges directly with standard 3/8-inch size HTMA couplings.
Question by: Ray H on Mar 8, 2026, 2:56 PM
Will this quick disconnect work with other HTMA couplings? I've got a few different ones on my equipment.
Answer by: Customer Support on Mar 10, 2026, 12:35 PM
It does indeed have a globally accepted interface meeting HTMA requirements, specifically in the 3/8” size. So, yes, it should be interchangeable with other HTMA couplings of that size.
Question by: Eddie H on Jul 15, 2025, 7:10 AM
trying to match up couplers on a hydraulic tool line. is this the female half in the FF series, and what size is it?
Answer by: Customer Support on Jul 16, 2025, 12:43 PM
For fit and interchange, you are looking at the FF Series female half with a -08 coupling size. It uses the ISO 16028 flush face interface and also meets HTMA requirements, and it is noted as interchangeable with HTMA couplings in the 3/8 inch size.
