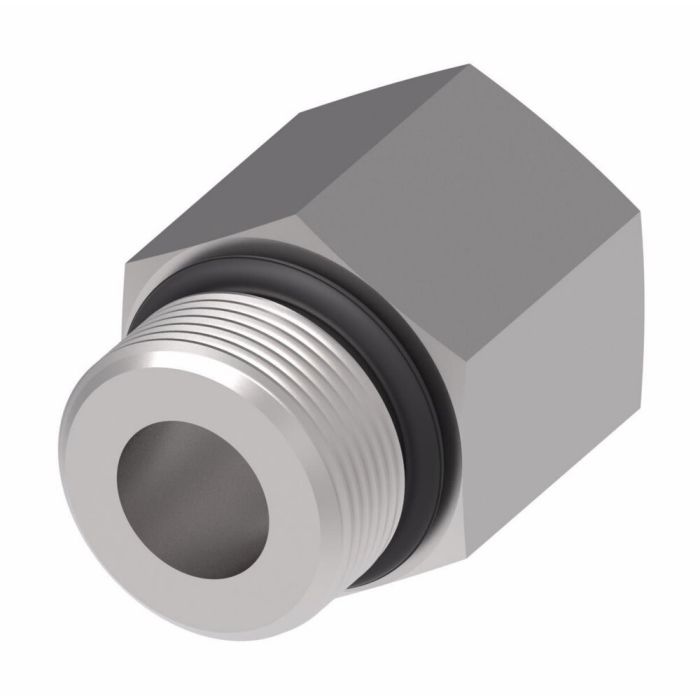

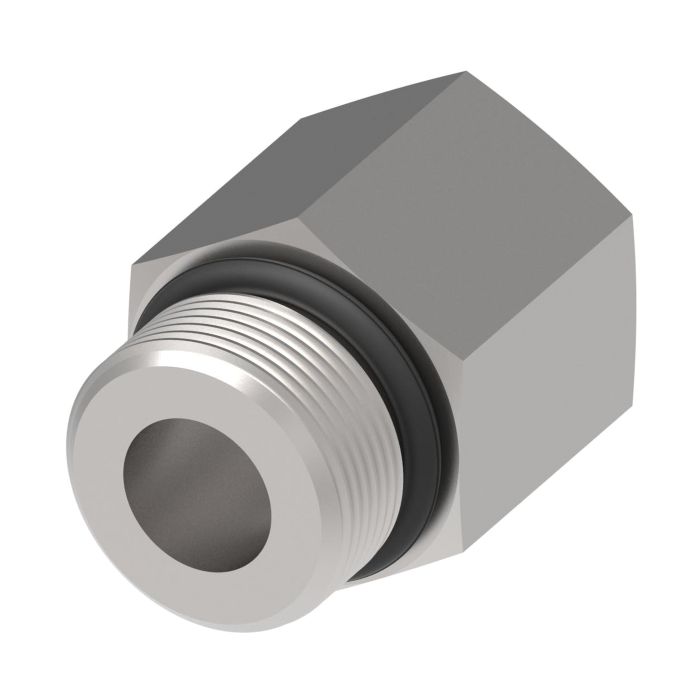

DANFOSS / EATON #16 MORB X #10 FORB (BUSHING)

Ask A Question

Description & Features

This carbon steel reducer adapter is a DANFOSS / EATON #16 MORB X #10 FORB (BUSHING) designed for demanding hydraulic applications.

The adapter features Dura-Kote plating for enhanced corrosion resistance and design flexibility. It is suitable for use in marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling applications. The male end (End 1) is SAE ORB with a size of #16. The female end (End 2) is SAE ORB with a size of 0.875.

SKU: FF1010-1610S

Supplier Part Number (MPN): FF1010-1610S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
5/8 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926
Dimensions
1.44 in L
Finish
Dura-Kote™
Fitting Type
Reducer
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1010 Series
Thread Size
7/8-14 x 1-5/16-12

Product Questions & Answers (1)

Question by: Janet C on Oct 10, 2025, 5:34 PM
What's the temperature range on this adapter? Gotta make sure it can handle the cold winters here.
Answer by: Customer Support on Oct 12, 2025, 1:03 PM
This carbon steel reducer adapter can handle temperatures down to -40 degrees.
