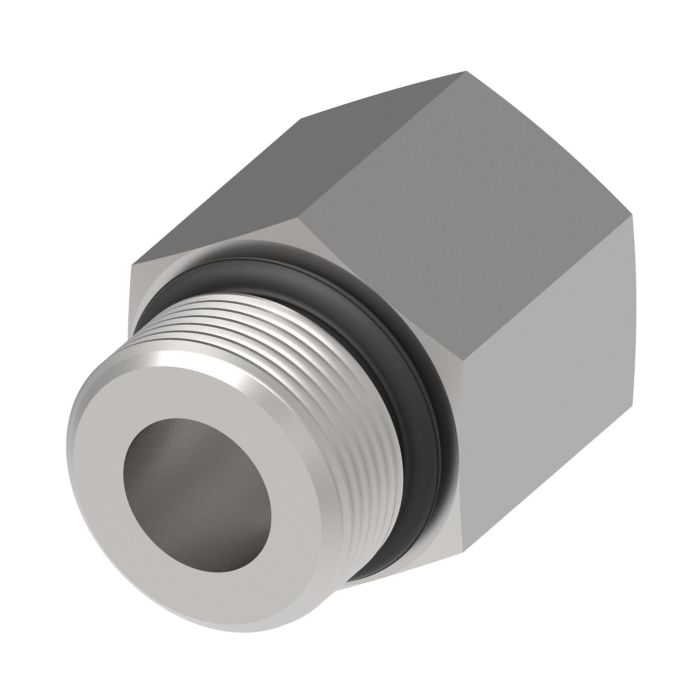

DANFOSS / EATON #20 MORB X #12 FORB (BUSHING)

Description & Features

A carbon steel bushing adapter designed for reducing connections between #20 male SAE O-Ring Boss and #12 female SAE O-Ring Boss ports, the Danfoss / Eaton FF1010-2012S is built for demanding industrial and mobile hydraulic environments. Dura-Kote plating provides strong corrosion resistance, and the design is rated for operating pressures above standard SAE requirements.

Suitable for marine and military equipment, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling applications, this adapter handles a wide range of service conditions including a minimum working temperature of -40°F. As part of the Aeroquip FF1010 series, it offers broad compatibility within a product line that spans hundreds of fitting configurations.

SKU: FF1010-2012S

Supplier Part Number (MPN): FF1010-2012S

Alternate Part Numbers: C1HR60, FF1010-20-12S, MI-00298805, MINO-00015F47237

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1-1/4 in
Connection Size 2
3/4 in
Connection Type
Female SAE ORB, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female SAE ORB
Dimension Standards
SAE J1926
Dimensions
1 in L
Finish
Dura-Kote™
Fitting Type
Reducer
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1010 Series
Thread Size
1-5/8-12 x 1-1/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Danfoss / Eaton ADPT 4M BOSS 8 F BOSS

FF1010-0408S

1/4 in

1/2 in

3/4-16 x 7/16-20

SAE O-Ring Boss Reducer

FF1010-0604S

3/8 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-0806S Steel Male To Female ORB Adapter

1/2 in

3/8 in

3/4-16, 9/16-18

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1006S Steel Male To Female ORB Adapter

5/8 in

3/8 in

7/8-14 x 9/16-18

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1008S Steel Male To Female ORB Adapter

5/8 in

1/2 in

7/8-14 x 3/4-16

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1206S Steel Male To Female ORB Adapter

3/4 in

3/8 in

1-1/16-12 x 9/16-18

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1208S Steel Male To Female ORB Adapter

3/4 in

1/2 in

3/4-16 x 1-1/16-12

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1210S Steel Male To Female ORB Adapter

3/4 in

5/8 in

7/8-14 x 1-1/16-12

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1216S Steel Male To Female ORB Adapter

3/4 in

1 in

1-5/16-12 x 1-1/16-12

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1608S Steel Male To Female ORB Adapter

1 in

1/2 in

1-5/16-12, 3/4-16

DANFOSS / EATON #16 MORB X #10 FORB (BUSHING)

FF1010-1610S

1 in

5/8 in

7/8-14 x 1-5/16-12

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1612S Steel Male To Female ORB Adapter

1 in

3/4 in

1-5/16-12 x 1-1/16-12

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-2016S Steel Male To Female ORB Adapter

1-1/4 in

1 in

1-5/8-12 x 1-5/16-12

Product Questions & Answers (1)

Question by: Gene P on Apr 5, 2026, 4:54 PM
What kind of corrosion resistance does this thing have?
Answer by: Customer Support on Apr 6, 2026, 6:14 PM
Dura-Kote plating gives this bushing adapter superior corrosion resistance, which is great for tough environments.
