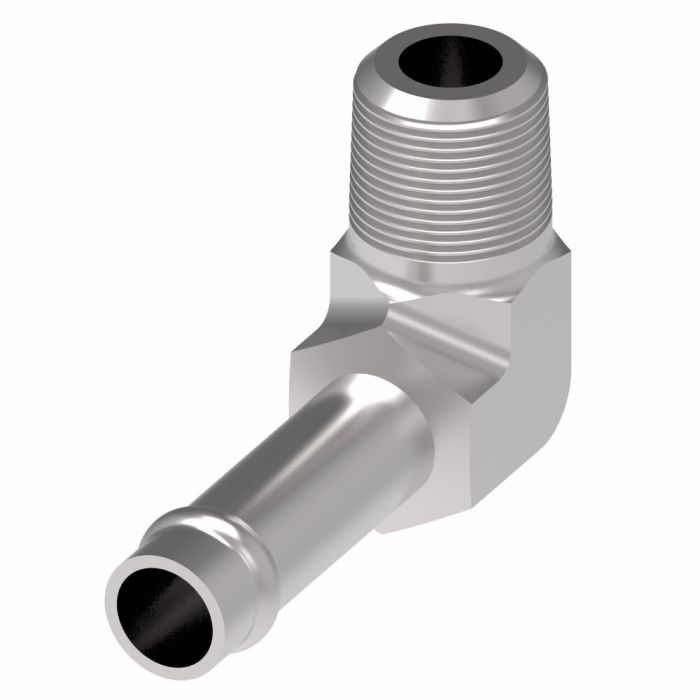

Aeroquip 90 DegREE Elbow TO Hose BARB

Ask A Question

Description & Features

This Eaton Aeroquip 90 Degree Elbow TO Hose BARB is suitable for a variety of applications, including marine and military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

Featuring Dura-Kote plating for superior corrosion resistance and design flexibility, this carbon steel elbow adapter conforms to SAE 430260 standards and offers higher operating pressures above SAE standards.

This NPTF male to line/hose/tube 90° elbow adapter has an end size 1 of 0.25 and end size 2 of 0.375.

SKU: FF1162-0406S

Supplier Part Number (MPN): FF1162-0406S

Alternate Part Numbers: C1EC66, MI-08748884, MINO-00015X86555

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Hose, MNPT
Connection Type 1
Male NPTF
Connection Type 2
Hose
Dimension Standards
SAE 430260
Dimensions
1.37 in L x 0.55 in W x 1.82 in H
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
0.55 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-65 to 400 deg F
Segment Code
C
Series
FF1162 Series
Thread Size
1/4-18

Product Questions & Answers (2)

Question by: Cindy B on Dec 14, 2025, 9:41 PM
trying to swap out an old elbow on my line, are the ends on this one 1/4 NPTF male to a 3/8 hose barb?
Answer by: Customer Support on Dec 16, 2025, 6:48 AM
It is an NPTF male 90 degree elbow adapter with a 0.25 end size on the threaded side and a 0.375 end size on the line hose tube side, so it matches a 1/4 NPTF male to 3/8 connection.
Question by: Ricky H on Apr 20, 2025, 1:57 PM
what industries is this elbow adapter actually rated for? trying to figure out if it'd hold up in a food processing setup
Answer by: Customer Support on Apr 22, 2025, 6:52 AM
Carbon steel construction with Dura-Kote plating covers a pretty wide range of demanding environments. Food and beverage processing is listed right alongside chemical processing, pulp and paper, marine, military, and offshore drilling applications. The plating is there specifically for corrosion resistance, which matters a lot in washdown-heavy or chemically active environments.
