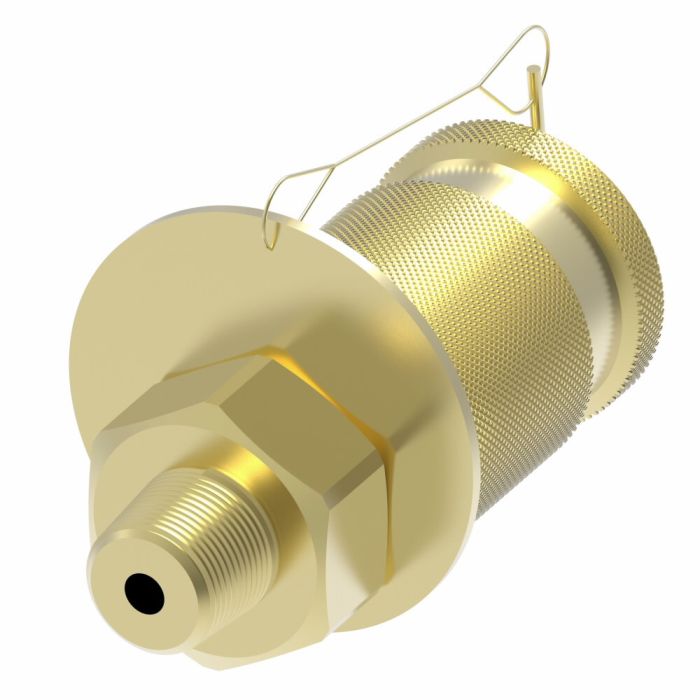

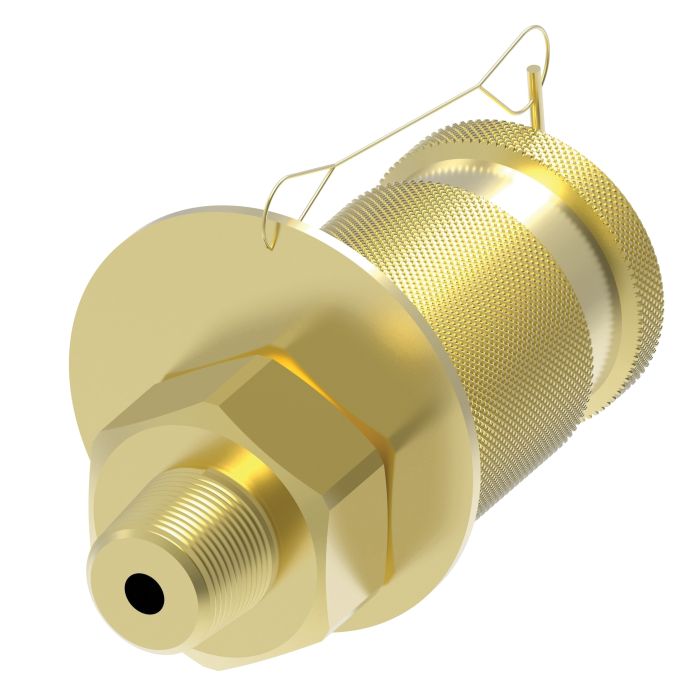

DANFOSS / EATON 1/4 TEST COUPLING

Description & Features

This carbon steel test coupling from Danfoss / Eaton Hansen features quick connect and disconnect, eliminating the need for special tools. The DANFOSS / EATON 1/4 TEST COUPLING exceeds ISO 16028 operating pressures.

Designed for use in hydraulic systems and compatible with mineral-based fluids, it's suitable for agricultural equipment, construction equipment, on-highway vehicles, and various industrial equipment applications. This component features FKM seals and 1/4 inch NPTF end connections.

SKU: FF14784

Supplier Part Number (MPN): FF14784

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
NPT, Quick-Disconnect
Connection Type 1
NPT
Connection Type 2
Quick Disconnect
Dimensions
0.79 in OD x 1.97 in L
Finish
Zinc Nickel-Plated
Fitting Type
Coupling
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
9000 psi
nmfc
50
Seal Material
FKM
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Connection Size 1 Connection Type 1 Connection Size 2 Connection Type Dimensions Price Action
Danfoss / Eaton TEST Coupling

FF14787

UNF

7/16 in

Quick-Disconnect, UNF

0.79 in OD x 1.85 in L

Product Questions & Answers (1)

Question by: Neil W on Dec 27, 2025, 1:21 PM
What kinda equipment is this coupling good for?
Answer by: Customer Support on Dec 29, 2025, 6:34 AM
It's designed for use in hydraulic systems with mineral-based fluids, so you'll find it on agricultural, construction, on-highway, and other industrial equipment.
