Danfoss / Eaton TEST Coupling

Description & Features

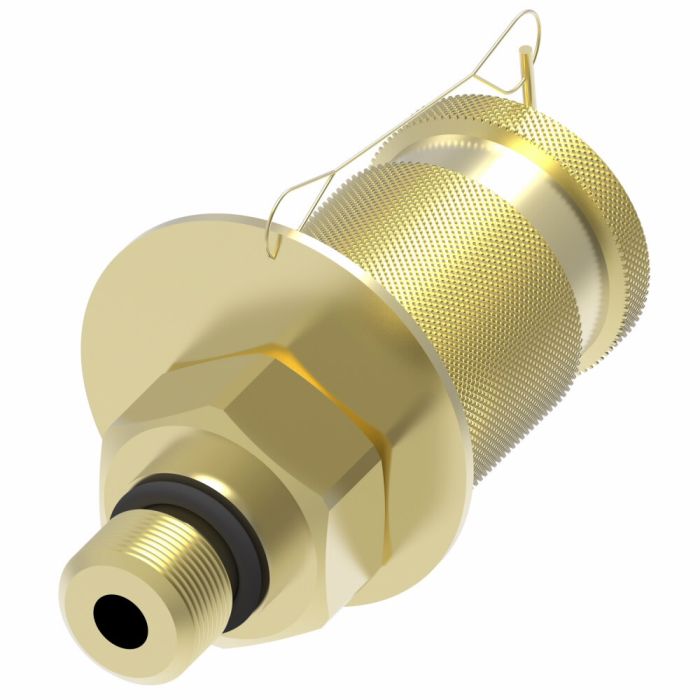

This carbon steel Danfoss / Eaton TEST Coupling is suitable for use with hydraulics and mineral-based fluids in agricultural, construction, on-highway, and industrial equipment applications.

This component features quick connect and disconnect functionality, eliminating the need for special tools. It exceeds ISO 16028 operating pressures and utilizes FKM seals. The coupling has a 7/16 port size with 0.4375 UNF end types and sizes.

SKU: FF14787

Supplier Part Number (MPN): FF14787

Specifications

Brand Aeroquip® by Danfoss	Angle Shape Straight	Connection Size 2 7/16 in	Connection Type Quick-Disconnect, UNF	Connection Type 1 UNF	Connection Type 2 Quick Disconnect	Dimensions 0.79 in OD x 1.85 in L	Finish Zinc Nickel-Plated	Fitting Type Coupling	Hex Size 0.67 in	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 9000 psi	nmfc 50	Seal Material FKM	Thread Sealant Without Thread Sealant	Thread Size 7/16-20

Product Questions & Answers (1)

Question by: Shane K on Aug 6, 2025, 8:57 AM

Will this coupling hold up with typical hydraulic fluid, or do I need to get something special?

Answer by: Customer Support on Aug 7, 2025, 4:03 PM

This coupling is suitable for use with hydraulics and mineral-based fluids.
