DANFOSS / EATON 6MFF-12MORB

Description & Features

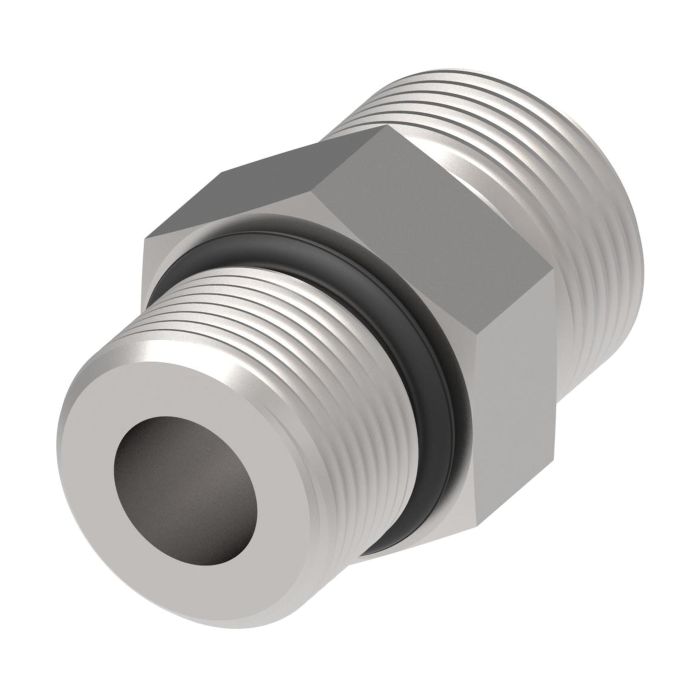

This carbon steel straight adapter, part number 6MFF-12MORB, is part of the DANFOSS / EATON FF1852T Series and designed for a variety of demanding applications including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling.

Featuring Dura-Kote plating for enhanced corrosion resistance and design flexibility, this ORS male to SAE ORB male straight adapter meets SAE 520120 certifications and is suitable for minimum working temperatures down to -40 degrees. End 1 has a 0.6875 size ORS male connection; End 2 has a SAE ORB male connection.

SKU: FF1852T0612S

Supplier Part Number (MPN): FF1852T0612S

Alternate Part Numbers: C1JA64

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 3/8 in	Connection Size 2 3/4 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE 520120/J1453/J1926	Dimensions 1.69 in L	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 1-1/4	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF1852T Series	Thread Size 11/16-16, 1-1/16-12	Tube OD 3/8 in

Product Questions & Answers (1)

Question by: Rex T on May 4, 2025, 7:47 PM

What kind of operating temperature range are we lookin' at here?

Answer by: Customer Support on May 5, 2025, 8:54 PM

This adapter is rated down to a minimum working temperature of -40 degrees, so it should hold up in pretty cold conditions.
