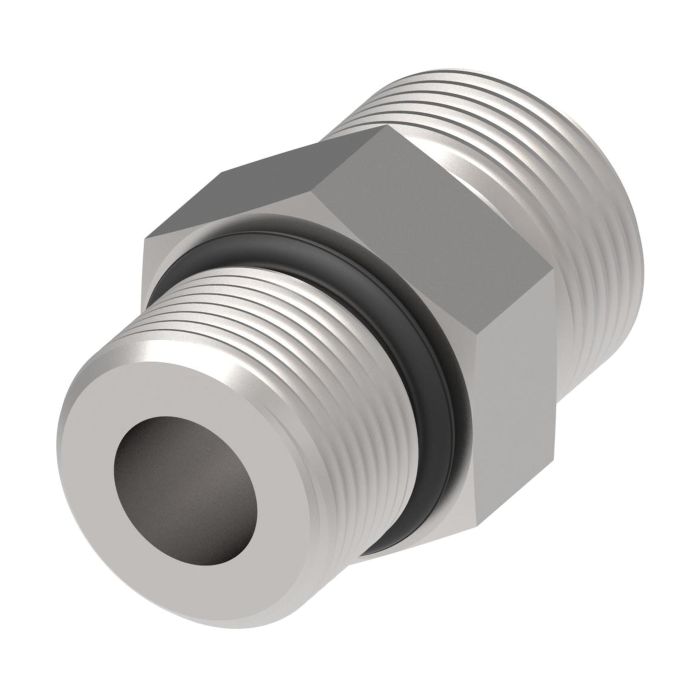

Aeroquip ORS/SAE O-Ring BOSS

Description & Features

Designed for straight-through connections between ORS male and SAE O-Ring Boss male ports, this carbon steel adapter from Aeroquip's FF1852T Series handles demanding industrial and fluid power applications across marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling environments. The 0.6875-inch end size accommodates a range of system configurations, and the adapter is rated for operating pressures above standard SAE specifications.

The Aeroquip ORS/SAE O-Ring BOSS features Dura-Kote plating, providing strong corrosion resistance suited to harsh or chemically aggressive conditions. With a working temperature floor of -40°F, it performs reliably in cold-weather and cryogenic-adjacent service. Hundreds of available styles in this product family support broad design flexibility when specifying hydraulic connections.

SKU: FF1852T0616S

Supplier Part Number (MPN): FF1852T0616S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE 520120/J1453/J1926
Dimensions
1.73 in L
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Series
FF1852T Series
Thread Size
11/16-16, 1-5/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0610S Steel Male ORS To ORB Adapter

3/8 in

5/8 in

11/16-16, 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0606S Steel Male ORS To ORB Adapter

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0406S Steel Male ORS To ORB Adapter

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0806S Steel Male ORS To ORB Adapter

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1010S Steel Male ORS To ORB Adapter

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0604S Steel Male ORS To ORB Adapter

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1612S Steel Male ORS To ORB Adapter

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0404S Steel Male ORS To ORB Adapter

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1616S Steel Male ORS To ORB Adapter

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0808S Steel Male ORS To ORB Adapter

1/2 in

1/2 in

13/16-16 x 3/4-16

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0605S Steel Male ORS To ORB Adapter

3/8 in

5/16 in

11/16-16 x 1/2-20

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1212S Steel Male ORS To ORB Adapter

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0810S Steel Male ORS To ORB Adapter

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1012S Steel Male ORS To ORB Adapter

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0608S Steel Male ORS To ORB Adapter

3/8 in

1/2 in

11/16-16 x 3/4-16

Danfoss / Eaton ORS/SAE O-Ring BOSS

FF1852T0405S

1/4 in

5/16 in

9/16-18 x 1/2-20

DANFOSS / EATON ORS ADPT 4 ORS 8 ORB

FF1852T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON 6MFF-12MORB

FF1852T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

DANFOSS / EATON ORS ADPT 8 ORS 12 ORB WIN

FF1852T0812S

1/2 in

3/4 in

13/16-16, 1-1/16-12

DANFOSS / EATON ADP 8 M ORS 14 M ORB

FF1852T0814S

1/2 in

1/2 in

13/16-16, 1-3/16-12

DANFOSS / EATON ORS ADPT 8 ORS 16 ORB

FF1852T0816S

1/2 in

1 in

13/16-16, 1-5/16-12

DANFOSS / EATON ADP 10 M ORS 8 F ORB

FF1852T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 6 ORB

FF1852T1206S

3/4 in

3/4 in

9/16-18, 1-3/16-12

DANFOSS / EATON #12 MORS X #8 MORB

FF1852T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

DANFOSS / EATON ORS ADP 12 ORS 10 ORB

FF1852T1210S

3/4 in

5/8 in

1-3/16-12, 7/8-14

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1852T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ORS ADPT 16 ORS 8 ORB

FF1852T1608S

1 in

1 in

1-7/16-12, 3/4-16

DANFOSS / EATON ORS ADP 16 ORS 10 ORB

FF1852T1610S

1 in

1 in

1-7/16-12, 7/8-14

DANFOSS / EATON #16 MORS X #20 MORB

FF1852T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON 20 MALE ORS /-16 MALE ORING BOSS W

FF1852T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1852T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

Danfoss / Eaton ORS ADPT

FF1852T2024S

1-1/4 in

1-1/2 in

1-11/16-12, 1-7/8-12

DANFOSS / EATON ORS ADP 24 ORS 20 ORB

FF1852T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO WIN

FF1852T2424S

1-1/2 in

1-1/2 in

2-12, 1 7/8-12

Product Questions & Answers (1)

Question by: Rick S on Jun 11, 2025, 2:05 PM
Reckon this adapter'll hold up okay in a marine environment? Saltwater can be pretty brutal.
Answer by: Customer Support on Jun 12, 2025, 4:02 PM
Dura-Kote plating gives this Aeroquip adapter strong corrosion resistance, so it should handle marine and offshore conditions without issue. It's also used in chemical processing, which suggests it's built to withstand harsh stuff.
