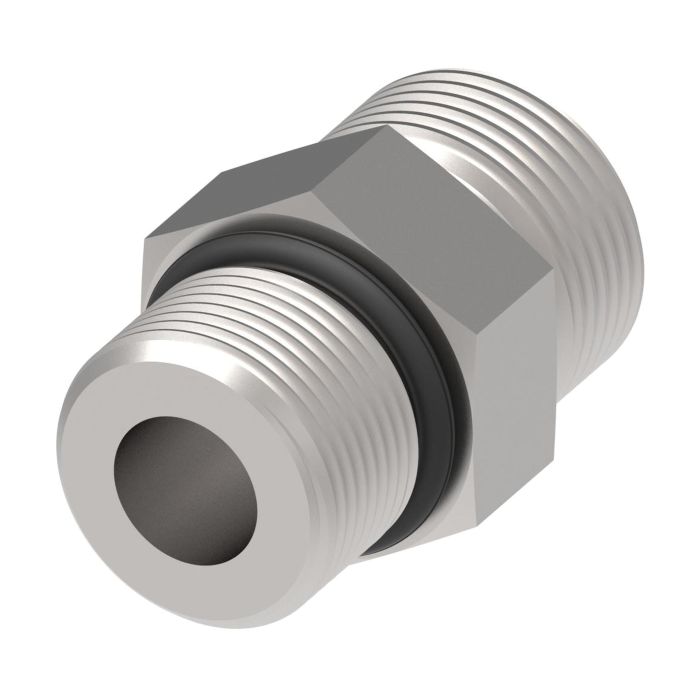

DANFOSS / EATON ORS ADPT 12 ORS 6 ORB

Description & Features

This carbon steel straight adapter is part of the Danfoss / Eaton FF1852T series and features Dura-Kote plating for superior corrosion resistance. Design flexibility is assured with hundreds of styles to choose from. This ORS Male / SAE ORB Male Straight Adapter offers higher operating pressures above SAE standards.

This adapter's applications include use in marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling environments. It has a minimum working temperature of -40 degrees. End 1 is male ORS with a size of 12. End 2 is male SAE ORB with a size of 0.5625.

SKU: FF1852T1206S

Supplier Part Number (MPN): FF1852T1206S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE 520120/J1453/J1926
Dimensions
1.77 in L
Fitting Type
Adapter
Hex Size
1-1/4
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Series
FF1852T Series
Thread Size
9/16-18, 1-3/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0610S Steel Male ORS To ORB Adapter

3/8 in

5/8 in

11/16-16, 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0606S Steel Male ORS To ORB Adapter

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0406S Steel Male ORS To ORB Adapter

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0806S Steel Male ORS To ORB Adapter

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1010S Steel Male ORS To ORB Adapter

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0604S Steel Male ORS To ORB Adapter

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1612S Steel Male ORS To ORB Adapter

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0404S Steel Male ORS To ORB Adapter

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1616S Steel Male ORS To ORB Adapter

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0808S Steel Male ORS To ORB Adapter

1/2 in

1/2 in

13/16-16 x 3/4-16

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0605S Steel Male ORS To ORB Adapter

3/8 in

5/16 in

11/16-16 x 1/2-20

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1212S Steel Male ORS To ORB Adapter

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0810S Steel Male ORS To ORB Adapter

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1012S Steel Male ORS To ORB Adapter

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0608S Steel Male ORS To ORB Adapter

3/8 in

1/2 in

11/16-16 x 3/4-16

Danfoss / Eaton ORS/SAE O-Ring BOSS

FF1852T0405S

1/4 in

5/16 in

9/16-18 x 1/2-20

DANFOSS / EATON ORS ADPT 4 ORS 8 ORB

FF1852T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON 6MFF-12MORB

FF1852T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

Aeroquip ORS/SAE O-Ring BOSS

FF1852T0616S

3/8 in

3/8 in

11/16-16, 1-5/16-12

DANFOSS / EATON ORS ADPT 8 ORS 12 ORB WIN

FF1852T0812S

1/2 in

3/4 in

13/16-16, 1-1/16-12

DANFOSS / EATON ADP 8 M ORS 14 M ORB

FF1852T0814S

1/2 in

1/2 in

13/16-16, 1-3/16-12

DANFOSS / EATON ORS ADPT 8 ORS 16 ORB

FF1852T0816S

1/2 in

1 in

13/16-16, 1-5/16-12

DANFOSS / EATON ADP 10 M ORS 8 F ORB

FF1852T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON #12 MORS X #8 MORB

FF1852T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

DANFOSS / EATON ORS ADP 12 ORS 10 ORB

FF1852T1210S

3/4 in

5/8 in

1-3/16-12, 7/8-14

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1852T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ORS ADPT 16 ORS 8 ORB

FF1852T1608S

1 in

1 in

1-7/16-12, 3/4-16

DANFOSS / EATON ORS ADP 16 ORS 10 ORB

FF1852T1610S

1 in

1 in

1-7/16-12, 7/8-14

DANFOSS / EATON #16 MORS X #20 MORB

FF1852T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON 20 MALE ORS /-16 MALE ORING BOSS W

FF1852T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1852T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

Danfoss / Eaton ORS ADPT

FF1852T2024S

1-1/4 in

1-1/2 in

1-11/16-12, 1-7/8-12

DANFOSS / EATON ORS ADP 24 ORS 20 ORB

FF1852T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO WIN

FF1852T2424S

1-1/2 in

1-1/2 in

2-12, 1 7/8-12

Product Questions & Answers (1)

Question by: Neil E on Jul 31, 2025, 1:53 PM
What kind of environments can this adapter handle? I work in a chemical plant and need something that won't corrode easily.
Answer by: Customer Support on Aug 2, 2025, 8:35 AM
This adapter is suited for harsh environments. It's made from carbon steel with Dura-Kote plating which makes it resistant to corrosion, which is why it is often used in chemical processing plants, marine and military applications, and even offshore drilling.
