DANFOSS / EATON ORS ADPT 16 ORS 8 ORB

Description & Features

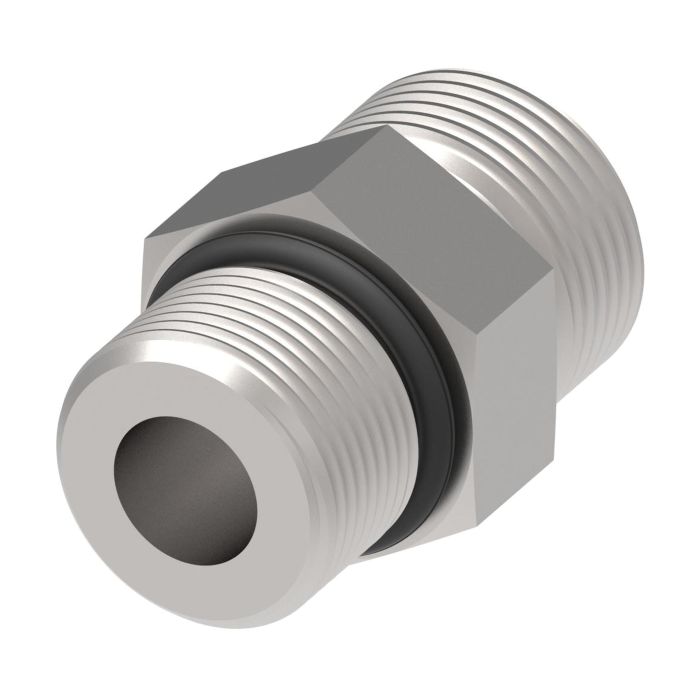

A straight adapter configured with a 16 ORS male end and an 8 SAE ORB male end, the Danfoss / Eaton FF1852T1608S is built from carbon steel with Dura-Kote plating for reliable corrosion resistance across demanding service environments. Certified to SAE 520120, it is engineered to support operating pressures above standard SAE requirements, making it suited for high-pressure hydraulic circuits where standard fittings may fall short.

This fitting is well-suited for use in marine and military equipment, chemical processing, pulp and paper facilities, offshore drilling, and food and beverage processing applications. The FF1852T Series offers broad design flexibility across hundreds of adapter configurations, and this unit carries a minimum working temperature rating of -40°F, supporting reliable performance in cold-environment service conditions.

SKU: FF1852T1608S

Supplier Part Number (MPN): FF1852T1608S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE 520120/J1453/J1926
Dimensions
1.96 in L
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FF1852T Series
Thread Size
1-7/16-12, 3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0610S Steel Male ORS To ORB Adapter

3/8 in

5/8 in

11/16-16, 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0606S Steel Male ORS To ORB Adapter

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0406S Steel Male ORS To ORB Adapter

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0806S Steel Male ORS To ORB Adapter

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1010S Steel Male ORS To ORB Adapter

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0604S Steel Male ORS To ORB Adapter

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1612S Steel Male ORS To ORB Adapter

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0404S Steel Male ORS To ORB Adapter

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1616S Steel Male ORS To ORB Adapter

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0808S Steel Male ORS To ORB Adapter

1/2 in

1/2 in

13/16-16 x 3/4-16

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0605S Steel Male ORS To ORB Adapter

3/8 in

5/16 in

11/16-16 x 1/2-20

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1212S Steel Male ORS To ORB Adapter

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0810S Steel Male ORS To ORB Adapter

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1012S Steel Male ORS To ORB Adapter

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0608S Steel Male ORS To ORB Adapter

3/8 in

1/2 in

11/16-16 x 3/4-16

Danfoss / Eaton ORS/SAE O-Ring BOSS

FF1852T0405S

1/4 in

5/16 in

9/16-18 x 1/2-20

DANFOSS / EATON ORS ADPT 4 ORS 8 ORB

FF1852T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON 6MFF-12MORB

FF1852T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

Aeroquip ORS/SAE O-Ring BOSS

FF1852T0616S

3/8 in

3/8 in

11/16-16, 1-5/16-12

DANFOSS / EATON ORS ADPT 8 ORS 12 ORB WIN

FF1852T0812S

1/2 in

3/4 in

13/16-16, 1-1/16-12

DANFOSS / EATON ADP 8 M ORS 14 M ORB

FF1852T0814S

1/2 in

1/2 in

13/16-16, 1-3/16-12

DANFOSS / EATON ORS ADPT 8 ORS 16 ORB

FF1852T0816S

1/2 in

1 in

13/16-16, 1-5/16-12

DANFOSS / EATON ADP 10 M ORS 8 F ORB

FF1852T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 6 ORB

FF1852T1206S

3/4 in

3/4 in

9/16-18, 1-3/16-12

DANFOSS / EATON #12 MORS X #8 MORB

FF1852T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

DANFOSS / EATON ORS ADP 12 ORS 10 ORB

FF1852T1210S

3/4 in

5/8 in

1-3/16-12, 7/8-14

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1852T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ORS ADP 16 ORS 10 ORB

FF1852T1610S

1 in

1 in

1-7/16-12, 7/8-14

DANFOSS / EATON #16 MORS X #20 MORB

FF1852T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON 20 MALE ORS /-16 MALE ORING BOSS W

FF1852T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1852T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

Danfoss / Eaton ORS ADPT

FF1852T2024S

1-1/4 in

1-1/2 in

1-11/16-12, 1-7/8-12

DANFOSS / EATON ORS ADP 24 ORS 20 ORB

FF1852T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO WIN

FF1852T2424S

1-1/2 in

1-1/2 in

2-12, 1 7/8-12

Product Questions & Answers (1)

Question by: Warren S on Oct 2, 2025, 7:17 PM
So, this thing's got different sized ends... the 16 ORS and 8 ORB, right? Just making sure I got that straight before I order.
Answer by: Customer Support on Oct 4, 2025, 6:18 AM
That's correct. It's a straight adapter that goes from a 16 ORS male end down to a smaller 8 SAE ORB male end.
