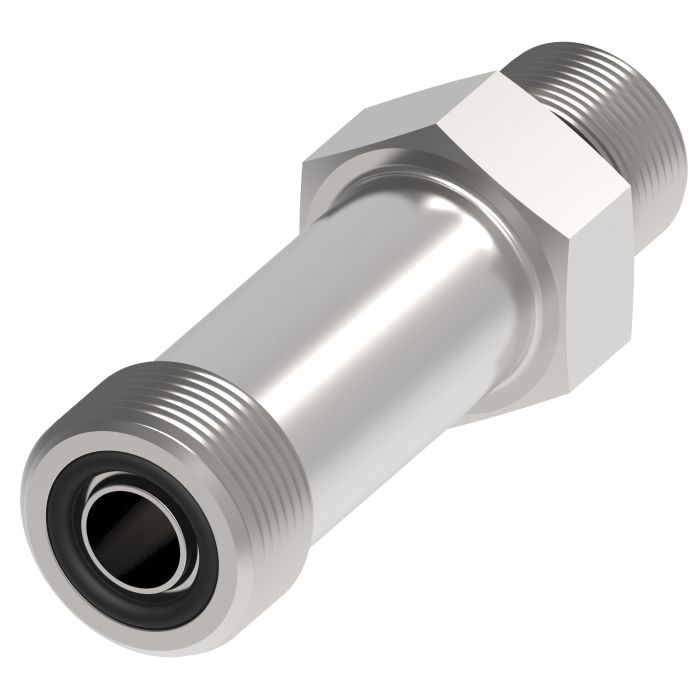

DANFOSS / EATON ADAPTER

Ask A Question

Description & Features

A straight adapter connecting 9/16 ORS male to 7/16 SAE ORB male, the Danfoss / Eaton Adapter is constructed from carbon steel with Dura-Kote plating for corrosion resistance well-suited to demanding service environments. The adapter is rated for operating pressures above standard SAE specifications, making it a reliable choice where elevated pressure performance is required.

Suited for use in marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling applications, this fitting handles a broad range of industrial fluid system requirements. The minimum working temperature of -40°F supports cold-climate and cryogenic-adjacent service conditions. Part of the Aeroquip FF1854T series, it is available in hundreds of configurations to accommodate varied connection requirements across a wide range of systems.

SKU: FF1854T0404S

Supplier Part Number (MPN): FF1854T0404S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dash Size
04
Dimension Standards
SAE 520122/J1453/J1926
Dimensions
2.07 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
5/8 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FF1854T Series
Thread Size
9/16-18, 7/16-20

Product Questions & Answers (1)

Question by: Phil S on Apr 6, 2026, 11:43 AM
Will this here adapter work okay in a food processing plant, where things get washed down a lot?
Answer by: Customer Support on Apr 7, 2026, 2:30 PM
Built with Dura-Kote plating, this adapter offers superior corrosion resistance, which makes it suitable for the frequent washdowns common in food and beverage processing environments.
