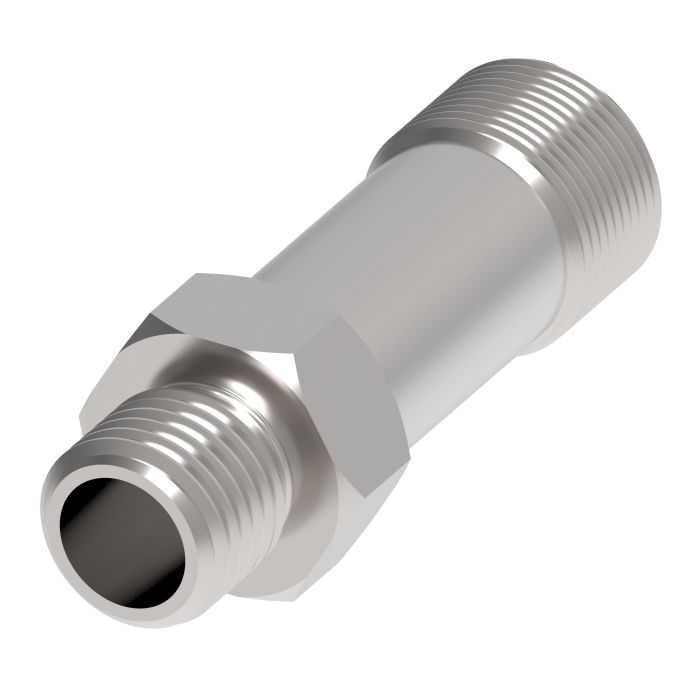

Danfoss / Eaton ORS Adapter

Ask A Question

Description & Features

Designed for use in demanding sectors including marine, military, chemical processing, offshore drilling, and food and beverage processing, this carbon steel straight adapter connects ORS male to SAE ORB male ports in a single inline configuration. The Danfoss / Eaton ORS Adapter is part of the Aeroquip FF1854T series and features Dura-Kote plating for corrosion resistance suited to harsh or moisture-prone environments.

Rated for operating pressures above standard SAE thresholds, this adapter accommodates a wide range of system requirements. A minimum working temperature of -40°F makes it suitable for cold-climate and refrigerated industrial applications. With hundreds of available styles across the FF1854T series, connection configurations can be matched precisely to existing port requirements without modification.

SKU: FF1854T1212S

Supplier Part Number (MPN): FF1854T1212S

Alternate Part Numbers: C1CU78

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dash Size
12
Dimension Standards
SAE 520122/J1453/J1926
Dimensions
3-3/4 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
1-1/4
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Series
FF1854T Series
Thread Size
1-3/16-12 x 1-1/16-12

Product Questions & Answers (1)

Question by: Kurt R on Oct 12, 2025, 3:40 PM
Will this here fitting hold up to some vibration on a hydraulic system for a log loader?
Answer by: Customer Support on Oct 13, 2025, 9:10 PM
Dura-Kote plating offers superior corrosion resistance which should help extend service life, and it's rated above standard SAE operating pressures. So, for most log loader applications, it ought to do the job just fine.
