AEROQUIP ADP 4 ORS 8 ORB ELL

Description & Features

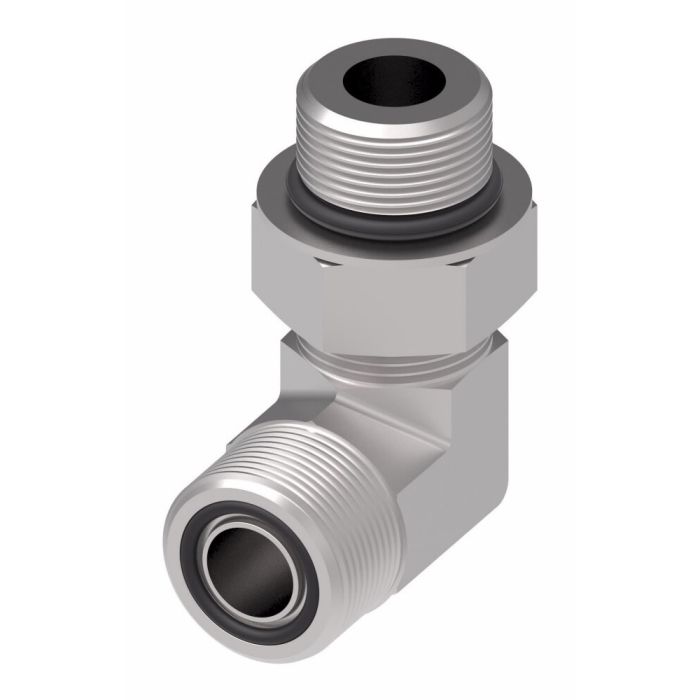

This Eaton Aeroquip adapter is a 90° elbow with a male ORS (O-Ring Seal) connection on one end and a male SAE ORB (SAE O-Ring Boss) connection on the other. The ORS side has a 0.5625" size, while the SAE ORB side measures 0.75". Designed for design flexibility, this AEROQUIP ADP 4 ORS 8 ORB ELL fitting offers hundreds of styles to choose from.

Constructed from carbon steel with Dura-Kote plating, this elbow adapter offers superior corrosion resistance. It is suitable for use in marine and military applications, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling. This adapter meets SAE J1453 standards and is designed for higher operating pressures above SAE standards. It withstands minimum working temperatures down to -65 degrees.

SKU: FF1868T0408S

Supplier Part Number (MPN): FF1868T0408S

Alternate Part Numbers: C1JA66

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE 520220/J1453/J1926
Drop Dimensions
1.6 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1868T Series
Thread Size
3/4-16, 9/16-18
Tube OD
1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0812S Steel Male ORS To ORB 90 Elbow

1/2 in

3/4 in

13/16-16, 1-1/16-12

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1616S Steel Male ORS To ORB 90 Elbow

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1212S Steel Male ORS To ORB 90 Elbow

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1012S Steel Male ORS To ORB 90 Elbow

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0406S Steel Male ORS To ORB 90 Elbow

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0806S Steel Male ORS To ORB 90 Elbow

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0404S Steel Male ORS To ORB 90 Elbow

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0810S Steel Male ORS To ORB 90 Elbow

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0604S Steel Male ORS To ORB 90 Elbow

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0606S Steel Male ORS To ORB 90 Elbow

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0608S Steel Male ORS To ORB 90 Elbow

3/8 in

1/2 in

11/16-16 x 3/4-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1010S Steel Male ORS To ORB 90 Elbow

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0808S Steel Male ORS To ORB 90 Elbow

1/2 in

1/2 in

13/16-16 x 3/4-16

DANFOSS / EATON ADAPTER

FF1868T0405S

1/4 in

1/4 in

9/16-18 x 1/2-20

DANFOSS / EATON ADAPTER

FF1868T0605S

3/8 in

5/16 in

11/16-16 x 1/2-20

DANFOSS / EATON ADPTRS/TUBE FTGS - CO

FF1868T0610S

3/8 in

5/8 in

11/16-16, 7/8-14

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO

FF1868T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

DANFOSS / EATON ORS ADPT 10 ORS 8 ORB

FF1868T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 8 ORB

FF1868T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

Aeroquip: Aeroquip FF1868T -12 MALE ORS / -10 MALE SAE O-Rin

FF1868T1210S

3/4 in

5/8 in

1-3/16-12

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1868T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ADP 16 ORS 12 ORB ELL

FF1868T1612S

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Danfoss / Eaton ADPTS/Tube Adapter -Code WIN

FF1868T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON ORS ADP 20 ORS 16 ORB WIN

FF1868T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1868T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

90° ORS/SAE O-Ring Boss

FF1868T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ORS ADP 24 ORS 24 ORB

FF1868T2424S

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (3)

Question by: Lee C on Sep 1, 2025, 12:10 PM
what industries is this aeroquip elbow adapter actually rated for? got a chemical processing line and want to make sure before i order
Answer by: Customer Support on Sep 3, 2025, 6:47 AM
Chemical processing is one of the listed applications for this fitting, along with marine and military use, pulp and paper, food and beverage processing, and offshore drilling. The carbon steel construction with Dura-Kote plating gives it solid corrosion resistance across those environments, so it's a legitimate fit for what you're describing.
Question by: Cindy M on Feb 2, 2026, 8:11 PM
What size is each end of this elbow?
Answer by: Customer Support on Feb 4, 2026, 6:15 AM
The ORS side is 0.5625 inches, and the SAE ORB side is 0.75 inches.
Question by: Gene T on Sep 10, 2025, 6:09 PM
got a tight spot in the line, is this the 90 degree elbow that goes from ORS male to SAE ORB male?
Answer by: Customer Support on Sep 12, 2025, 4:26 PM
For a right-angle turn, it’s a 90° elbow adapter with a male ORS (O-Ring Seal) on one end and a male SAE ORB (SAE O-Ring Boss) on the other.
