DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO

Description & Features

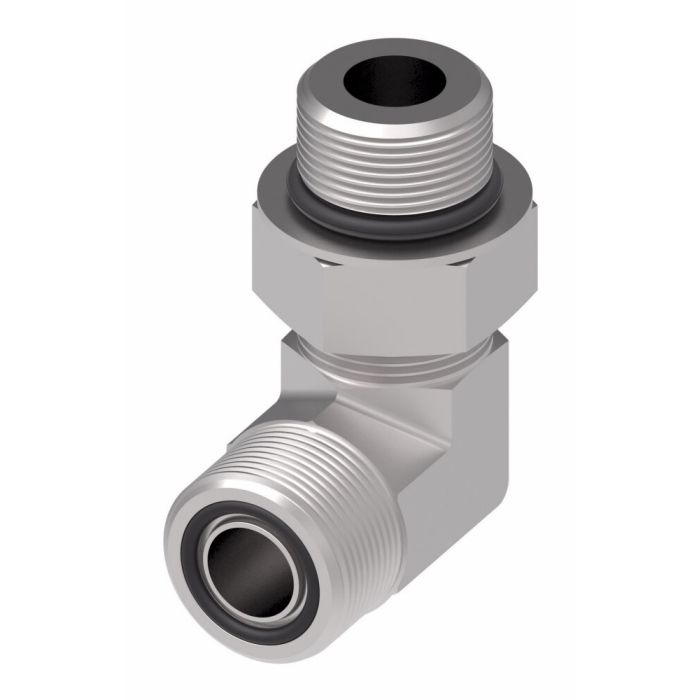

This carbon steel elbow adapter from Danfoss / Eaton features a 90° angle and is suitable for a range of applications including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling environments.

This ORS Male/SAE ORB Male adapter meets SAE J1453 standards and offers design flexibility. The Danfoss / Eaton ADPTRS/TUBE ADAPTER - CO also features Dura-Kote plating for superior corrosion resistance and is designed for higher operating pressures above SAE standards. End 1 is a 0.6875" male ORS, while End 2 is a male SAE ORB.

SKU: FF1868T0612S

Supplier Part Number (MPN): FF1868T0612S

Alternate Part Numbers: C1FK56

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE 520220/J1453/J1926
Drop Dimensions
2.17 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
3/8 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1868T Series
Thread Size
11/16-16, 1-1/16-12
Tube OD
3/8 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0812S Steel Male ORS To ORB 90 Elbow

1/2 in

3/4 in

13/16-16, 1-1/16-12

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1616S Steel Male ORS To ORB 90 Elbow

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1212S Steel Male ORS To ORB 90 Elbow

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1012S Steel Male ORS To ORB 90 Elbow

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0406S Steel Male ORS To ORB 90 Elbow

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0806S Steel Male ORS To ORB 90 Elbow

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0404S Steel Male ORS To ORB 90 Elbow

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0810S Steel Male ORS To ORB 90 Elbow

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0604S Steel Male ORS To ORB 90 Elbow

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0606S Steel Male ORS To ORB 90 Elbow

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0608S Steel Male ORS To ORB 90 Elbow

3/8 in

1/2 in

11/16-16 x 3/4-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1010S Steel Male ORS To ORB 90 Elbow

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0808S Steel Male ORS To ORB 90 Elbow

1/2 in

1/2 in

13/16-16 x 3/4-16

DANFOSS / EATON ADAPTER

FF1868T0405S

1/4 in

1/4 in

9/16-18 x 1/2-20

AEROQUIP ADP 4 ORS 8 ORB ELL

FF1868T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON ADAPTER

FF1868T0605S

3/8 in

5/16 in

11/16-16 x 1/2-20

DANFOSS / EATON ADPTRS/TUBE FTGS - CO

FF1868T0610S

3/8 in

5/8 in

11/16-16, 7/8-14

DANFOSS / EATON ORS ADPT 10 ORS 8 ORB

FF1868T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 8 ORB

FF1868T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

Aeroquip: Aeroquip FF1868T -12 MALE ORS / -10 MALE SAE O-Rin

FF1868T1210S

3/4 in

5/8 in

1-3/16-12

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1868T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ADP 16 ORS 12 ORB ELL

FF1868T1612S

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Danfoss / Eaton ADPTS/Tube Adapter -Code WIN

FF1868T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON ORS ADP 20 ORS 16 ORB WIN

FF1868T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1868T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

90° ORS/SAE O-Ring Boss

FF1868T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ORS ADP 24 ORS 24 ORB

FF1868T2424S

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Ricky J on Jan 1, 2026, 2:54 PM
Will this work for fuel lines, or is it just for hydraulics?
Answer by: Customer Support on Jan 2, 2026, 6:21 PM
Designed for hydraulic applications, this carbon steel elbow adapter is also suitable for other uses, including chemical processing and even food and beverage environments.
