DANFOSS / EATON ORS ADPT 12 ORS 8 ORB

Description & Features

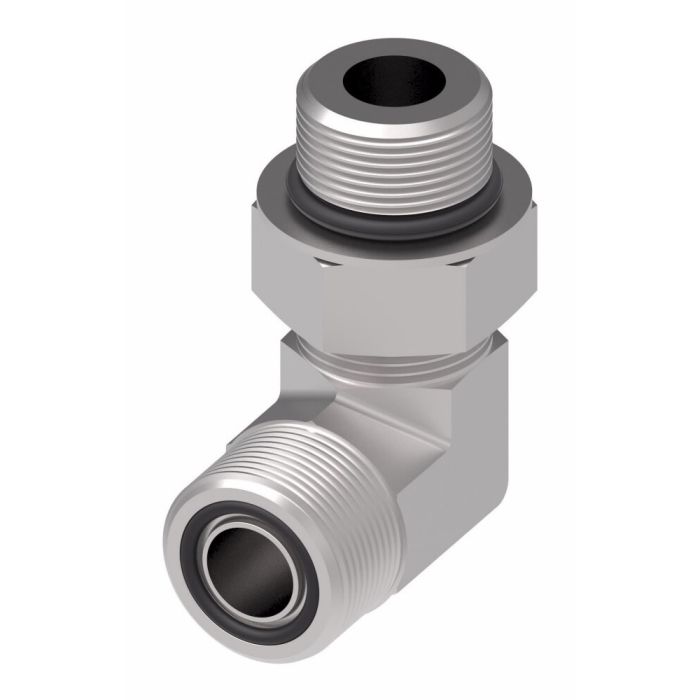

This Eaton Aeroquip 90° elbow adapter is constructed of carbon steel with Dura-Kote plating for superior corrosion resistance. The DANFOSS / EATON ORS ADPT features design flexibility and higher operating pressures above SAE standards.

This ORS male to SAE ORB male adapter is suitable for use in marine/military, chemical processing, pulp and paper, and food and beverage processing applications, as well as off-shore drilling. It has a minimum working temperature of -65 degrees. End 1 is ORS male with a 1 1/8-12 thread size; End 2 is SAE ORB male with a 3/4-16 thread size.

SKU: FF1868T1208S

Supplier Part Number (MPN): FF1868T1208S

Alternate Part Numbers: C1GL77, MI-00306438, MINO-00015F55516

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE 520220/J1453/J1926
Drop Dimensions
1.84 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1868T Series
Thread Size
1-3/16-12, 3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0812S Steel Male ORS To ORB 90 Elbow

1/2 in

3/4 in

13/16-16, 1-1/16-12

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1616S Steel Male ORS To ORB 90 Elbow

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1212S Steel Male ORS To ORB 90 Elbow

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1012S Steel Male ORS To ORB 90 Elbow

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0406S Steel Male ORS To ORB 90 Elbow

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0806S Steel Male ORS To ORB 90 Elbow

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0404S Steel Male ORS To ORB 90 Elbow

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0810S Steel Male ORS To ORB 90 Elbow

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0604S Steel Male ORS To ORB 90 Elbow

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0606S Steel Male ORS To ORB 90 Elbow

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0608S Steel Male ORS To ORB 90 Elbow

3/8 in

1/2 in

11/16-16 x 3/4-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1010S Steel Male ORS To ORB 90 Elbow

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0808S Steel Male ORS To ORB 90 Elbow

1/2 in

1/2 in

13/16-16 x 3/4-16

DANFOSS / EATON ADAPTER

FF1868T0405S

1/4 in

1/4 in

9/16-18 x 1/2-20

AEROQUIP ADP 4 ORS 8 ORB ELL

FF1868T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON ADAPTER

FF1868T0605S

3/8 in

5/16 in

11/16-16 x 1/2-20

DANFOSS / EATON ADPTRS/TUBE FTGS - CO

FF1868T0610S

3/8 in

5/8 in

11/16-16, 7/8-14

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO

FF1868T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

DANFOSS / EATON ORS ADPT 10 ORS 8 ORB

FF1868T1008S

5/8 in

1/2 in

1-14, 3/4-16

Aeroquip: Aeroquip FF1868T -12 MALE ORS / -10 MALE SAE O-Rin

FF1868T1210S

3/4 in

5/8 in

1-3/16-12

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1868T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ADP 16 ORS 12 ORB ELL

FF1868T1612S

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Danfoss / Eaton ADPTS/Tube Adapter -Code WIN

FF1868T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON ORS ADP 20 ORS 16 ORB WIN

FF1868T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1868T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

90° ORS/SAE O-Ring Boss

FF1868T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ORS ADP 24 ORS 24 ORB

FF1868T2424S

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Kurt M on Dec 19, 2025, 4:32 PM
What kind of corrosion protection does this adapter have? Running equipment near saltwater and rust is always a fight.
Answer by: Customer Support on Dec 21, 2025, 11:17 AM
Carbon steel with Dura-Kote plating is what you're getting here. That coating is specifically built to hold up against corrosion, which is part of why this adapter is rated for marine and offshore drilling environments. Saltwater exposure is well within the scope of what this thing was made to handle.
