DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

Description & Features

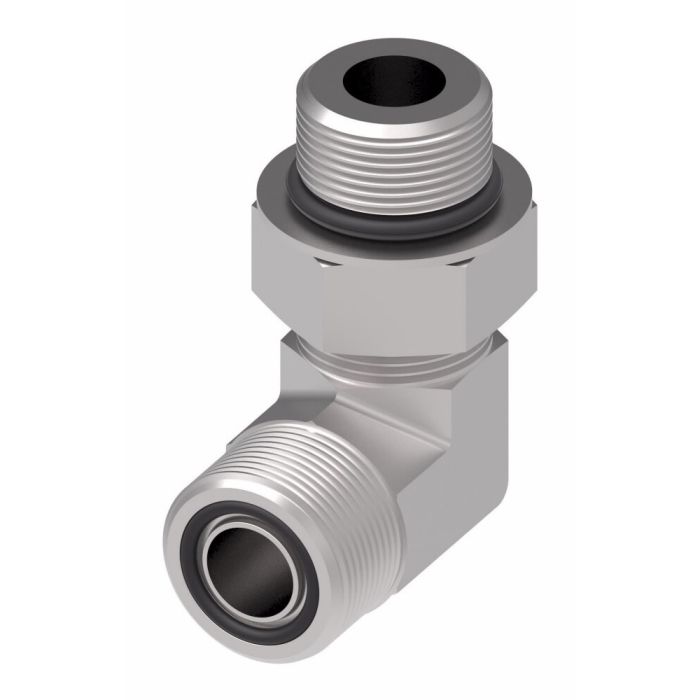

A 90° elbow configuration with male ORS and male SAE ORB ends, the Danfoss / Eaton ORS Adp 12 Ors 16 Orb Win is a carbon steel adapter designed for high-demand hydraulic systems where corrosion resistance and reliable sealing are priorities. Dura-Kote plating provides enhanced protection against corrosion, and the adapter is rated to perform at working temperatures as low as -65°F. Compliance with SAE J1453 confirms dimensional and performance standards are met across its range.

Suited for use across marine, military, chemical processing, food and beverage, pulp and paper, and offshore drilling environments, this adapter handles higher operating pressures above standard SAE requirements. The hex size of 1.62 inches supports confident wrenching during installation, and the 2.35-inch drop dimension supports offset routing in tight assemblies. With hundreds of styles available in the Eaton Aeroquip line, this fitting fits naturally into larger multi-adapter configurations.

SKU: FF1868T1216S

Supplier Part Number (MPN): FF1868T1216S

Alternate Part Numbers: C1HE82

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE 520220/J1453/J1926
Drop Dimensions
2.35 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
1-5/8
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1868T Series
Thread Size
1-3/16-12 x 1-5/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0812S Steel Male ORS To ORB 90 Elbow

1/2 in

3/4 in

13/16-16, 1-1/16-12

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1616S Steel Male ORS To ORB 90 Elbow

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1212S Steel Male ORS To ORB 90 Elbow

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1012S Steel Male ORS To ORB 90 Elbow

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0406S Steel Male ORS To ORB 90 Elbow

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0806S Steel Male ORS To ORB 90 Elbow

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0404S Steel Male ORS To ORB 90 Elbow

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0810S Steel Male ORS To ORB 90 Elbow

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0604S Steel Male ORS To ORB 90 Elbow

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0606S Steel Male ORS To ORB 90 Elbow

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0608S Steel Male ORS To ORB 90 Elbow

3/8 in

1/2 in

11/16-16 x 3/4-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1010S Steel Male ORS To ORB 90 Elbow

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0808S Steel Male ORS To ORB 90 Elbow

1/2 in

1/2 in

13/16-16 x 3/4-16

DANFOSS / EATON ADAPTER

FF1868T0405S

1/4 in

1/4 in

9/16-18 x 1/2-20

AEROQUIP ADP 4 ORS 8 ORB ELL

FF1868T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON ADAPTER

FF1868T0605S

3/8 in

5/16 in

11/16-16 x 1/2-20

DANFOSS / EATON ADPTRS/TUBE FTGS - CO

FF1868T0610S

3/8 in

5/8 in

11/16-16, 7/8-14

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO

FF1868T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

DANFOSS / EATON ORS ADPT 10 ORS 8 ORB

FF1868T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 8 ORB

FF1868T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

Aeroquip: Aeroquip FF1868T -12 MALE ORS / -10 MALE SAE O-Rin

FF1868T1210S

3/4 in

5/8 in

1-3/16-12

DANFOSS / EATON ADP 16 ORS 12 ORB ELL

FF1868T1612S

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Danfoss / Eaton ADPTS/Tube Adapter -Code WIN

FF1868T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON ORS ADP 20 ORS 16 ORB WIN

FF1868T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1868T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

90° ORS/SAE O-Ring Boss

FF1868T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ORS ADP 24 ORS 24 ORB

FF1868T2424S

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (1)

Question by: Diane H on Aug 30, 2025, 7:11 AM
Will this fitting hold up to marine use, or is it just for shops and factories?
Answer by: Customer Support on Aug 31, 2025, 1:49 PM
Dura-Kote plating provides enhanced protection against corrosion, making this adapter well-suited for marine environments as well as chemical processing, food and beverage, pulp and paper, and offshore drilling applications.
