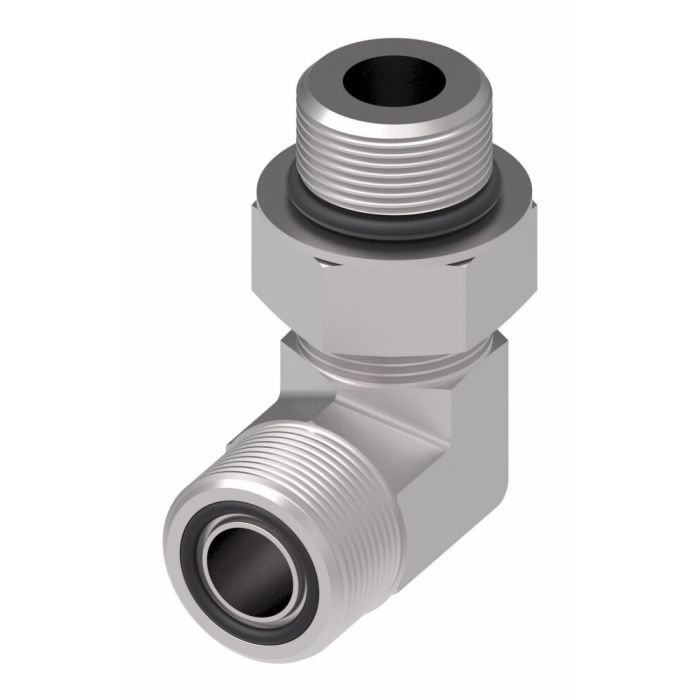

DANFOSS / EATON ORS ADP 20 ORS 16 ORB WIN

Ask A Question

Description & Features

Engineered for demanding environments, the Danfoss / Eaton ORS Male/SAE ORB Male 90° Elbow Adapter is crafted from durable carbon steel, ensuring longevity and performance in applications such as marine and military sectors, chemical processing, and off-shore drilling. Featuring Dura-Kote plating, this adapter provides superior corrosion resistance, vital for challenging conditions.

Meeting SAE J1453 standards, this adapter offers design flexibility with numerous styles available, accommodating higher operating pressures than typical SAE standards. The product boasts a male ORS connection at one end and a male SAE O-Ring Boss (ORB) at the other, facilitating robust and secure connections. With a drop dimension of 2.4200 inches and hex size of 1.62 inches, this component is optimized for effective use in various industrial systems.

SKU: FF1868T2016S

Supplier Part Number (MPN): FF1868T2016S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE 520220/J1453/J1926
Drop Dimensions
2.42 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
1-5/8
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1868T Series
Thread Size
1-11/16-12, 1-5/16-12

Product Questions & Answers (1)

Question by: Larry L on May 26, 2025, 7:07 PM
Will this fitting hold up to typical pressures in a hydraulic system on farm equipment?
Answer by: Customer Support on May 28, 2025, 7:56 AM
Dura-Kote plating should help with corrosion resistance in outdoor conditions. This adapter is also designed to handle higher operating pressures than standard SAE fittings, giving you extra confidence it'll hold up.
