DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

Description & Features

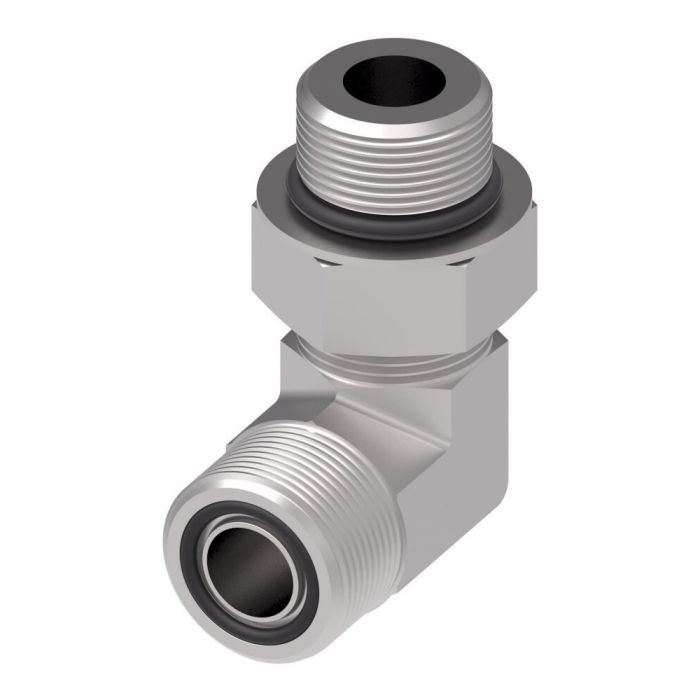

This Eaton Aeroquip ORS Male/SAE ORB Male 90° Elbow Adapter, also known as a DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN, is suitable for a variety of applications, including marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

Manufactured from carbon steel and plated with Dura-Kote for enhanced corrosion resistance, this elbow adapter offers design flexibility and is engineered to withstand higher operating pressures that exceed SAE standards. It features a male ORS end and a male SAE ORB end, both with a size of 20. Conforming to SAE J1453 certifications, it can operate in temperatures as low as -65 degrees Fahrenheit.

SKU: FF1868T2020S

Supplier Part Number (MPN): FF1868T2020S

Alternate Part Numbers: C1KG93, MI-00444598, MINO-00015I01229

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE 520220/J1453/J1926
Drop Dimensions
2.45 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1868T Series
Thread Size
1-11/16-12, 1-5/8-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0812S Steel Male ORS To ORB 90 Elbow

1/2 in

3/4 in

13/16-16, 1-1/16-12

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1616S Steel Male ORS To ORB 90 Elbow

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1212S Steel Male ORS To ORB 90 Elbow

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1012S Steel Male ORS To ORB 90 Elbow

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0406S Steel Male ORS To ORB 90 Elbow

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0806S Steel Male ORS To ORB 90 Elbow

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0404S Steel Male ORS To ORB 90 Elbow

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0810S Steel Male ORS To ORB 90 Elbow

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0604S Steel Male ORS To ORB 90 Elbow

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0606S Steel Male ORS To ORB 90 Elbow

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0608S Steel Male ORS To ORB 90 Elbow

3/8 in

1/2 in

11/16-16 x 3/4-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T1010S Steel Male ORS To ORB 90 Elbow

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

FF1868T0808S Steel Male ORS To ORB 90 Elbow

1/2 in

1/2 in

13/16-16 x 3/4-16

DANFOSS / EATON ADAPTER

FF1868T0405S

1/4 in

1/4 in

9/16-18 x 1/2-20

AEROQUIP ADP 4 ORS 8 ORB ELL

FF1868T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON ADAPTER

FF1868T0605S

3/8 in

5/16 in

11/16-16 x 1/2-20

DANFOSS / EATON ADPTRS/TUBE FTGS - CO

FF1868T0610S

3/8 in

5/8 in

11/16-16, 7/8-14

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO

FF1868T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

DANFOSS / EATON ORS ADPT 10 ORS 8 ORB

FF1868T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 8 ORB

FF1868T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

Aeroquip: Aeroquip FF1868T -12 MALE ORS / -10 MALE SAE O-Rin

FF1868T1210S

3/4 in

5/8 in

1-3/16-12

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1868T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ADP 16 ORS 12 ORB ELL

FF1868T1612S

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Danfoss / Eaton ADPTS/Tube Adapter -Code WIN

FF1868T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON ORS ADP 20 ORS 16 ORB WIN

FF1868T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

90° ORS/SAE O-Ring Boss

FF1868T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ORS ADP 24 ORS 24 ORB

FF1868T2424S

1-1/2 in

1-1/2 in

2-12 x 1-7/8-12

Product Questions & Answers (3)

Question by: Glen G on Jan 7, 2026, 7:08 AM
What kind of environments is this elbow adapter actually built for? Asking cause we run equipment in some pretty rough conditions and need something that ain't gonna corrode out on us fast.
Answer by: Customer Support on Jan 9, 2026, 6:27 AM
Carbon steel construction with Dura-Kote plating gives it solid corrosion resistance for demanding environments. It's rated for marine and military use, offshore drilling, chemical processing, pulp and paper, and food and beverage applications, so it's not a light-duty part by any stretch. If your operation falls into any of those categories, the corrosion protection is purpose-built for that kind of exposure.
Question by: Stan M on Oct 19, 2025, 6:57 PM
Will this fitting hold up in a saltwater environment on my boat?
Answer by: Customer Support on Oct 21, 2025, 6:21 AM
Dura-Kote plating gives this fitting enhanced corrosion resistance, which makes it suitable for marine applications.
Question by: Wes W on Nov 30, 2025, 12:20 PM
got a hose end that’s ORS size 20, and the port on the block is SAE ORB size 20. is this the right 90 to tie those together?
Answer by: Customer Support on Dec 1, 2025, 9:55 PM
Built for exactly that hookup, it is a 90 degree elbow adapter with a male ORS end and a male SAE ORB end, both in size 20.
