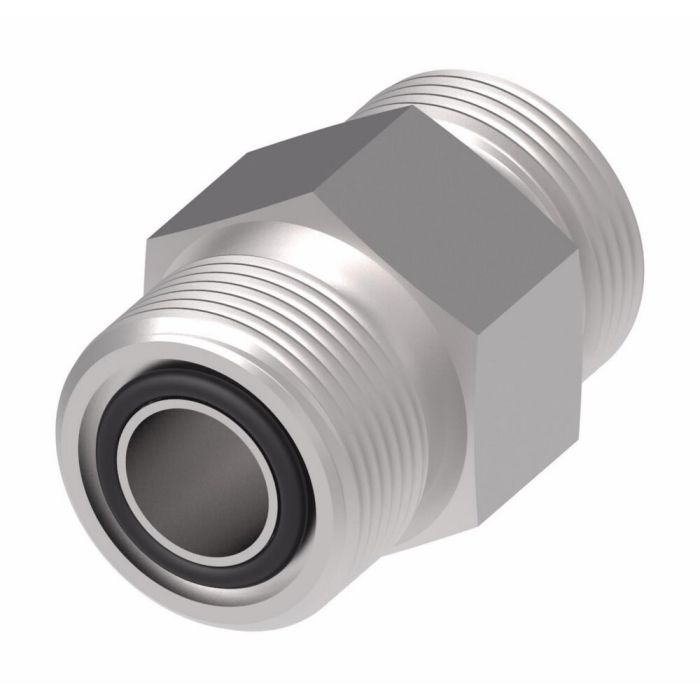

Designed for use in demanding industrial environments, the Danfoss / Eaton ORS ADPT is a male-to-male straight adapter connecting two ORS (O-Ring Straight) fittings in a single inline configuration. Constructed from carbon steel with Dura-Kote plating, it delivers strong resistance to corrosion across a working temperature range starting at -40°F, making it well-suited for marine, military, offshore drilling, chemical processing, food and beverage, and pulp and paper applications.
Part of the Eaton Aeroquip FF2000T Series, this adapter meets SAE 520101 certification and is rated for operating pressures above standard SAE thresholds. The 13/16-inch end size and straight-through geometry allow for straightforward inline connections where consistent flow path alignment is required. With hundreds of available styles across the FF2000T Series, this fitting fits within a broader system of compatible hydraulic adapters.
SKU: FF2000T1208S
Supplier Part Number (MPN): FF2000T1208S
Alternate Part Numbers: C1EC76, MI-02030365, MINO-00015J26303
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1EC76, Alternate Part Number MI-02030365, Alternate Part Number MINO-00015J26303, Alternate Part Number MINO-00925X13054
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE 520101
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 2
0.81
End Type 1
ORS
End Type 2
ORS
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Straight Adapters
Item Type
ORS Male / ORS Male Straight Adapter
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.25
Sub Brand
None
Supplier Part Number
FF2000T1208S
Product Weight
0.34 lbs
Product Questions & Answers (3)
Question by: Chad H on Sep 1, 2025, 8:44 PM
what industries is this adapter actually built for? trying to figure out if it's appropriate for our processing line
Answer by: Customer Support on Sep 3, 2025, 8:25 PM
Carbon steel with Dura-Kote plating makes this one a solid fit for some pretty demanding environments. It's rated for marine, military, offshore drilling, chemical processing, food and beverage, and pulp and paper applications. The corrosion resistance is the main reason it holds up across all those different settings. If your processing line falls into any of those categories, this adapter was built with exactly that kind of use in mind.
Question by: Scott D on Feb 18, 2026, 10:57 AM
Just makin' sure, this here adapter is male on both ends, right?
Answer by: Customer Support on Feb 20, 2026, 6:25 AM
that's correct. This adapter is male on both ends with ORS (O-Ring Straight) fittings.
Question by: Hank T on Sep 16, 2025, 6:15 AM
got two ORS ports i need to tie together in a straight shot. is this the right kind of adapter
Answer by: Customer Support on Sep 17, 2025, 6:11 PM
For an inline connection, it’s a male ORS to male ORS straight adapter, so it’s meant to join two ORS (O-Ring Straight) fittings end to end with a straight-through flow path.
