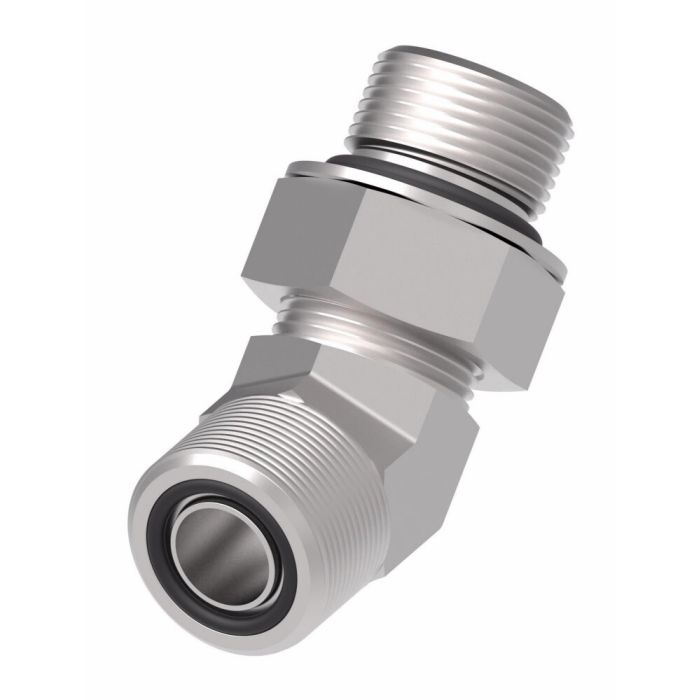

This Eaton Aeroquip ORS Male/SAE ORB Male 45° Elbow Adapter, also known as a DANFOSS / EATON FTG, is constructed of carbon steel with Dura-Kote plating, providing superior corrosion resistance. Design flexibility is ensured with hundreds of styles to choose from.
Well-suited for applications in marine/military, chemical processing, pulp and paper industries, and food and beverage processing, this elbow adapter conforms to SAE J1453 standards and is designed for higher operating pressures above SAE standards. It features a male ORS end with a 0.6875-inch size and a male SAE ORB end with a 0.4375-inch size, and is rated for a minimum working temperature of -65 degrees.
SKU: FF2068T0604S
Supplier Part Number (MPN): FF2068T0604S
|
Alternate Part Numbers
MINO-00925X13124
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE J1453
|
Drop Dimension
1.22
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.69
|
End Size 2
0.44
|
End Type 1
ORS
|
End Type 2
SAE ORB
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
ORS Male/SAE ORB Male 45°° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
0.62
|
Sub Brand
None
|
Supplier Part Number
FF2068T0604S
|
Product Weight
0.01 lbs
|
